Product number: ZYT021358
Back to page
BX TYPE Shackle
●Forged with super alloy steel,quenched and tempered.
●It has the characteristics of small size, light weight and high strength.
● Every shackle body has the rated load and model identification.
●Shackle body-surface finish:hot dip galvanizing or electro-galvanized.
The maximum proof load is 2 times that of the working load limit, and the ultimate load is 4 times that of the working load limit.
Provide 6:1 the high strength shackle according to requirements.
●Manufactured  in accordance with RR-C-271D and ISO2415-2004.


S6  Grade
ITEM No. WLL(t) SIZE(mm) Weight(kg)
W D A B E G H
S-BX0.5-1/4 0.5 11.9 7.9 28.7 6.4 19.8 15.5 46.7 0.05
S-BX0.75-5/16 0.75 13.5 9.7 31.0 7.9 21.3 19.1 53.1 0.10
S-BX1-3/8 1 16.8 11.2 36.6 9.7 26.2 23.1 63.2 0.15
S-BX1.5-7/16 1.5 19.1 12.7 42.9 11.2 29.5 26.9 73.9 0.22
S-BX2-1/2 2 20.6 16.0 47.8 12.7 33.3 30.2 83.3 0.36
S-BX3.25-5/8 3.25 26.9 19.1 60.5 16.0 42.9 38.1 106.4 0.76
S-BX4.75-3/4 4.75 31.8 22.4 71.4 19.1 50.8 46.0 126.2 1.23
S-BX6.5-7/8 6.5 36.6 25.4 84.1 22.4 57.9 53.1 148.1 1.79
S-BX8.5-1 8.5 42.9 28.7 95.3 25.4 68.3 60.5 166.6 2.57
S-BX9.5-1 1/8 9.5 45.0 31.8 108.0 28.7 73.9 68.3 189.7 3.75
S-BX12-1 1/4 12 51.6 35.1 119.1 31.8 82.6 76.2 209.6 5.31
S-BX13.5-1 3/8 13.5 57.2 38.1 133.4 35.1 92.2 84.1 232.7 7.18
S-BX17-1 1/2 17 60.5 41.4 146.1 38.1 98.6 92.2 254.0 9.43
S-BX25-1 3/4 25 73.2 50.8 177.8 44.5 127 106.4 313.4 15.38
S-BX35-2 35 82.6 57.2 196.9 50.8 146.1 122.2 347.5 23.70
S-BX55-2 1/2 55 104.9 70.0 266.7 66.5 184.2 144.5 453.1 44.57
S-BX85-3 85 127.0 82.6 330.2 76.0 200.2 165.1 546.1 69.85
S-BX120-3 1/2 120 133.4 95.3 371.6 91.9 228.6 203.2 625.6 120.2
S-BX150-4 150 139.7 108.0 368.3 104.1 254.0 228.6 652.5 153.32


T8 Grade
Compared with the same size of S6 2T~80T Strength improvement  40%~100%, 110T~175T Strength improvement  16%~29%.
More lightweight and durable.
It is suitable for space limited occasions.
ITEM NO. WLL(t) SIZE(mm) Weight(kg)
W D A B E G H
T-BX2-3/8 2 16.8 11.2 36.6 9.7 26.2 23.1 63.2 0.15
T-BX2.6-7/16 2.6 19.1 12.7 42.9 11.2 29.5 26.9 73.9 0.22
T-BX3.3-1/2 3.3 20.6 16.0 47.8 12.7 33.3 30.2 83.3 0.36
T-BX5-5/8 5 26.9 19.1 60.5 16.0 42.9 38.1 106.4 0.76
T-BX7-3/4 7 31.8 22.4 71.4 19.1 50.8 46.0 126.2 1.23
T-BX9.5-7/8 9.5 36.6 25.4 84.1 22.4 57.9 53.1 148.1 1.79
T-BX12.5-1 12.5 42.9 28.7 95.3 25.4 68.3 60.5 166.6 2.57
T-BX15-1 1/8 15 45.0 31.8 108.0 28.7 73.9 68.3 189.7 3.75
T-BX18-1 1/4 18 51.6 35.1 119.1 31.8 82.6 76.2 209.6 5.31
T-BX21-1 3/8 21 57.2 38.1 133.4 35.1 92.2 84.1 232.7 7.18
T-BX30-1 1/2 30 60.5 41.4 146.1 38.1 98.6 92.2 254.0 9.43
T-BX40-1 3/4 40 73.2 50.8 177.8 44.5 127 106.4 313.4 15.38
T-BX55-2 55 82.6 57.2 196.9 50.8 146.1 122.2 347.5 23.70
T-BX85-2 1/2 85 104.9 70.0 266.7 66.5 184.2 144.5 453.1 44.57
T-BX120-3 120 127.0 82.6 330.2 76.0 200.2 165.1 546.1 69.85
T-BX150-3 1/2 150 133.4 95.3 371.6 91.9 228.6 203.2 625.6 120.2

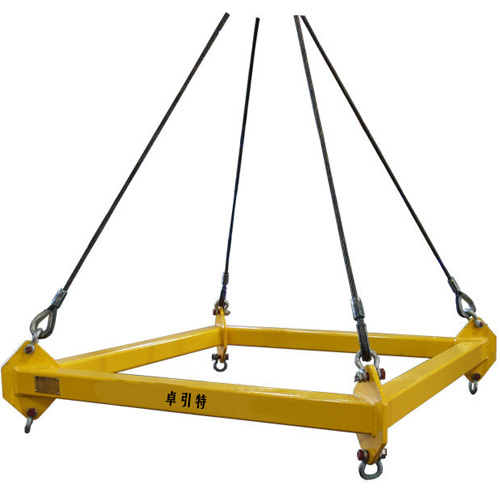

Application scenarios
