Chain Swivel
●Standard :EN1677-4.
●Forged super alloy steel-Quenched and tempered
●Individually proof test at 2.5 times working load limit.
●Fatiuge tested for 20000 cycles.
●Breakage test
●100% magnaflux crack detection.
●Safety factor 4:1
●Surface finish: Powder plastified.

●Forged super alloy steel-Quenched and tempered
●Individually proof test at 2.5 times working load limit.
●Fatiuge tested for 20000 cycles.
●Breakage test
●100% magnaflux crack detection.
●Safety factor 4:1
●Surface finish: Powder plastified.

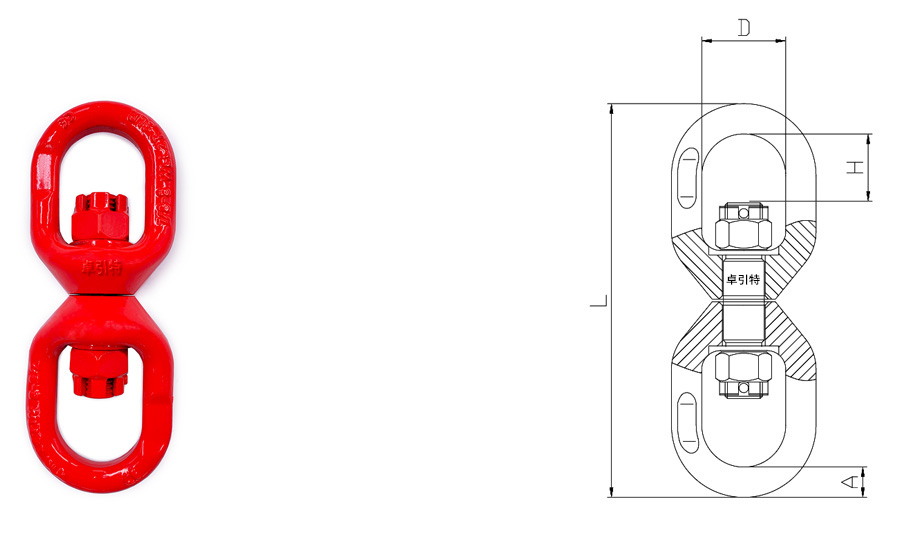

ITEM No. | WLL | Breaking Strength | Size(mm) | Weight | |||
T | T | A±1 | D±1 | H±1 | L±2 | kg | |
8-031-8 | 2 | 8 | 13 | 36 | 29.5 | 169 | 0.67 |
8-031-10 | 3.15 | 12.6 | 15.5 | 42 | 36.5 | 200 | 1.6 |
8-031-13 | 5.3 | 21.2 | 17 | 50 | 41.5 | 226 | 1.75 |
8-031-16 | 12.5 | 50 | 26 | 72 | 63 | 292 | 4.25 |
