Wire Rope Clip
●According to GB5976-2006
●Wire rope clip for rope terminations.
●Surface:galvanised.

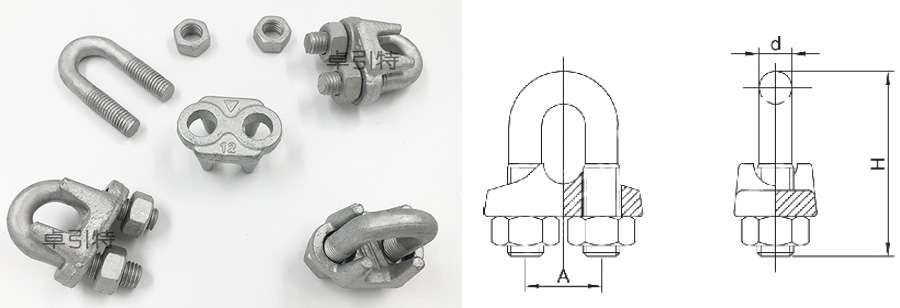

| Specifications | Size (mm) | |||
| Metric | Inch | d | A | H |
| KT-M6 | 1/4 | 8 | 19 | 26 |
| KT-M8 | 5/16 | 10 | 22 | 35 |
| KT-M10 | 3/8 | 12 | 25 | 38 |
| KT-M12 | 7/16 | 13 | 30 | 48 |
| KT-M 14 | 1/2 | 13 | 30 | 48 |
| KT-M 16 | 9/16 | 14 | 33 | 57 |
| KT-M 18 | 5/8 | 14 | 33 | 60 |
| KT-M 20 | 3/4 | 16 | 38 | 70 |
| KT-M 22 | 7/8 | 19 | 45 | 79 |
| KT-M 24 | 1 | 19 | 48 | 89 |
| KT-M 28 | 1 1/8 | 19 | 51 | 99 |
| KT-M 32 | 1 1/4 | 22 | 59 | 108 |
| KT-M 36 | 1 3/8 | 22 | 60 | 118 |
| KT-M 40 | 1 1/2 | 22 | 70 | 125 |
| KT-M 44 | 1 5/8 | 26 | 70 | 135 |
| KT-M 48 | 1 3/4 | 29 | 78 | 146 |
| KT-M 52 | 2 | 32 | 86 | 164 |
| KT-M 56 | 2 1/4 | 32 | 99 | 181 |
| KT-M 60 | 2 1/2 | 32 | 105 | 195 |
