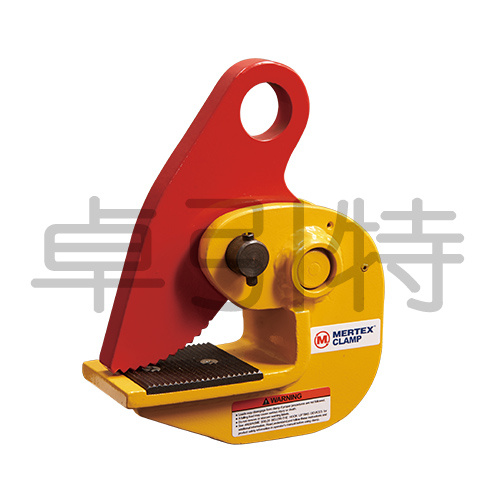

●Used for horizontal lifting the steel plate.
●It is made of low carbon high quality alloy steel.
●No collision of suspended objects in the process of lifting.

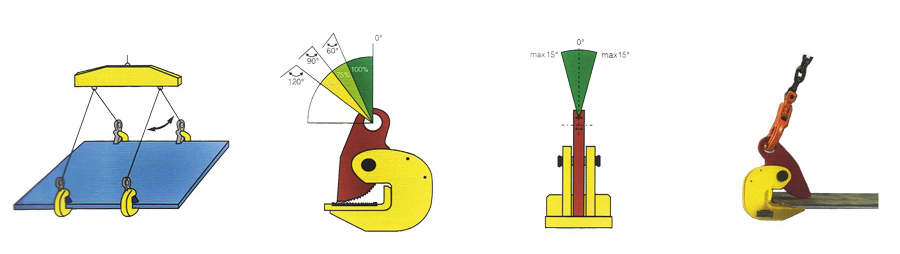

●The maximum lifting weight is the working load limit,when the hanging clamp is used in pairs and the angle of the hanging point is 60 degrees.

ITEM No.	WLL（t/ Per Pair）	Thickness of steel plate （mm）	Self Weight（kg）
ZHQ0.8	0.8	0～25	2.5
ZHQ 1	1	0～30	3.5
ZHQ 1.6	1.6	0～30	4
ZHQ 2	2	0～40	5
ZHQ 3.2	3.2	0～45	6
ZHQ4	4	0～50	6.5
ZHQ5	5	0～55	7.5
ZHQ6	6	0～65	10.5
ZHQ6B	6	0～130	22
ZHQ8	8	0～100	22
ZHQ10	10	0～125	33
