Turn Clamps (Die-forging)

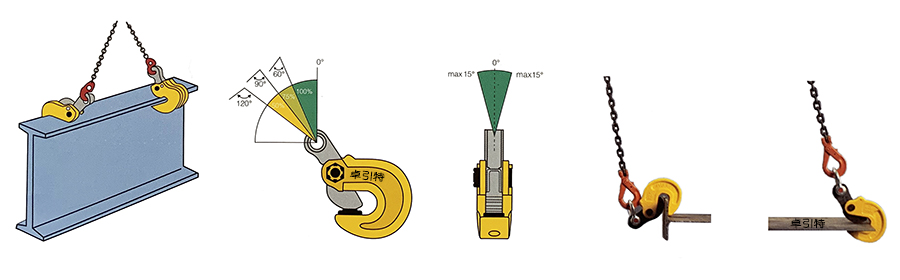

●For lifting and turn steel plate.
●Characteristic: compact, light weight ,easy to use.
●The main body and parts are made from die-forge special alloy steels,which are optimally tempered for maximum strength and durability.
| Model | WLL（t/ Per Pair） | Thickness of steel plate（mm） | Weight（kg） |
| DFM1 | 1 | 0～15 | 2.7 |
| DFM2 | 2 | 0～20 | 5.6 |
| DFM3 | 3 | 0～30 | 8 |
| DFM5 | 5 | 0～60 | 13.4 |
