Product number: ZYT021613
Back to page
Electronic Scale
●It adopts enhanced. 32-bit microprocessor based on ARM core, which has high performance, real-time, low power consumption and low voltage operation.
●Standardized 433MHz wireless module, long distance, strong anti-interference ability.(868 MHz.2.4 GHz Wireless Module Optional )

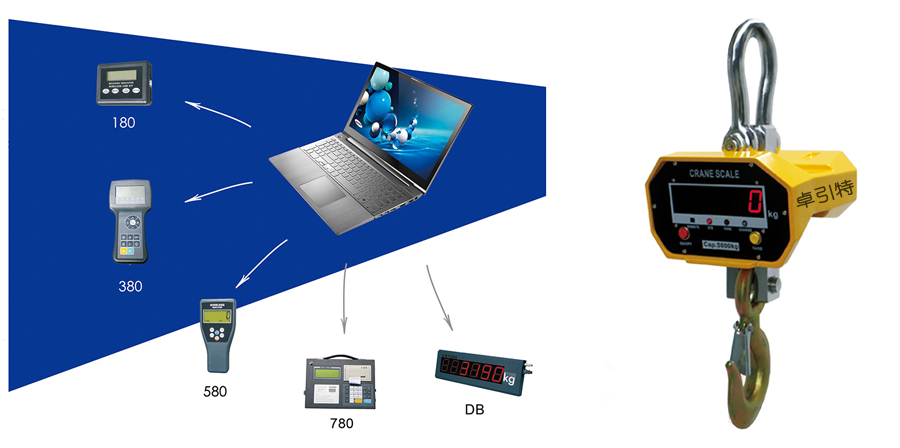

●Weighing value and stability information can be displayed on PC.
●The company name can be entered arbitrarily on the PC to complete the functions of storage, printing and query.
![](/web_upfile/ck_file/images/2018/05/20180510_102844_477.jpg)
![](/web_upfile/ck_file/images/2018/05/20180510_100337_822.jpg)
Model | Range | Size( mm) | Weight | |||||
kg | A | B | C | D | H | R | kg | |
OCS-SX-2 | 2000 | 95 | 180 | 33 | 264 | 570 | 27 | 12 |
OCS-SX-3 | 3000 | 95 | 180 | 40 | 264 | 580 | 27 | 13 |
OCS-SX5 | 5000 | 124 | 188 | 50 | 264 | 665 | 39 | 21 |
OCS-SX-10 | 10000 | 124 | 206 | 60 | 264 | 745 | 45 | 30 |
![](/web_upfile/ck_file/images/2018/05/20180510_100742_710.jpg)

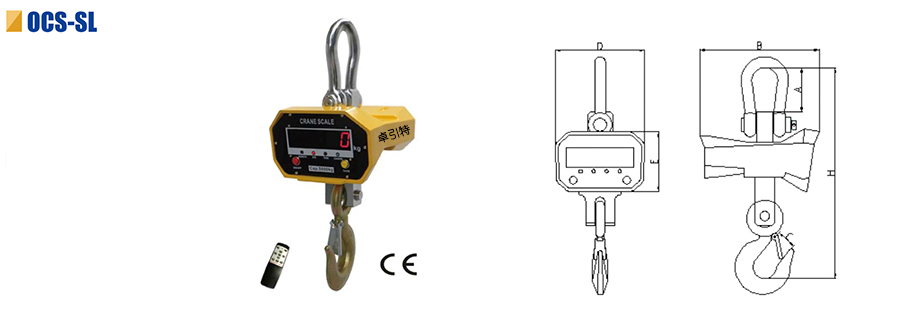

Model | Range | Graduation value | Size(mm) | Weight | |||||
kg | Kg | A | B | C | D | E | H | kg | |
OCS-SL-2 | 2000 | 1 | 95 | 260 | 33 | 195 | 135 | 430 | 10.5 |
OCS-SL-3 | 3000 | 1 | 95 | 260 | 40 | 195 | 135 | 455 | 11.5 |
OCS-SL-5 | 5000 | 2 | 120 | 325 | 50 | 240 | 165 | 535 | 17.5 |
OCS-SL10 | 10000 | 5 | 124 | 325 | 60 | 240 | 165 | 660 | 29.5 |
OCS-SL-15 | 15000 | 5 | 225 | 345 | 70 | 240 | 165 | 855 | 49 |
OCS-SL-20 | 20000 | 10 | 225 | 345 | 85 | 240 | 165 | 920 | 56 |
![](/web_upfile/ck_file/images/2018/05/20180510_101059_378.jpg)

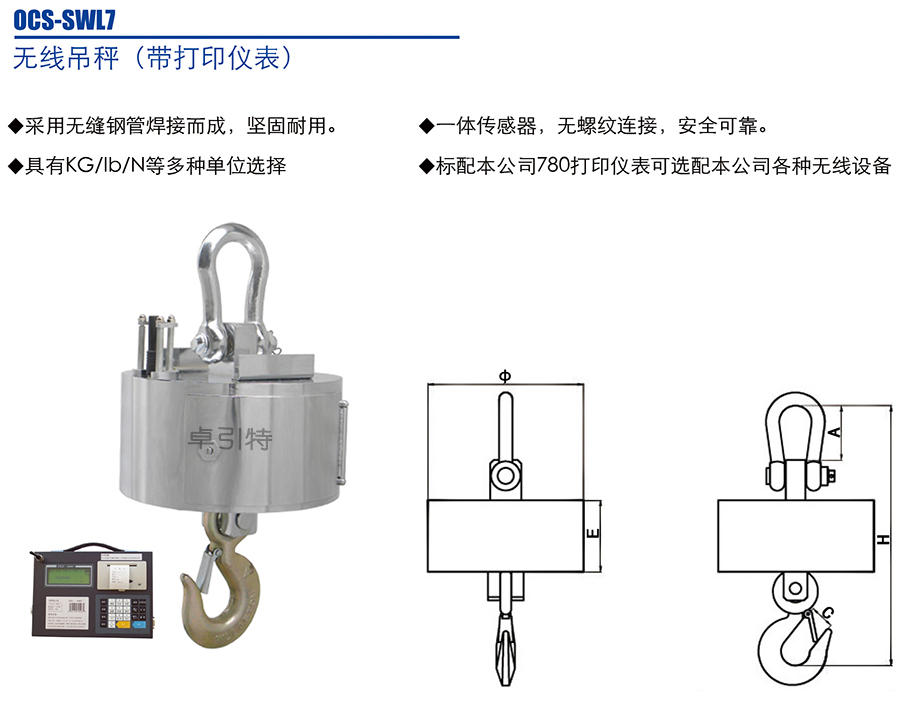

Model | Range | Graduation value | Size(mm) | Weight | ||||
Kg | Kg | A | C | E | H | φ | Kg | |
OCS-SWL7-2 | 2000 | 1 | 95 | 33 | 145 | 445 | 270 | 33 |
OCS-SWL7-3 | 3000 | 1 | 95 | 40 | 145 | 445 | 270 | 34 |
OCS-SWL7-5 | 5000 | 2 | 120 | 50 | 155 | 485 | 298 | 45 |
OCS-SWL7-10 | 10000 | 5 | 124 | 60 | 170 | 655 | 325 | 55 |
OCS-SWL7-15 | 15000 | 5 | 225 | 70 | 170 | 855 | 325 | 75 |
OCS-SWL7-20 | 20000 | 10 | 225 | 85 | 170 | 920 | 325 | 85 |
OCS-SWL7-30 | 30000 | 10 | 260 | 105 | 200 | 1055 | 375 | 125 |
OCS-SWL7-50 | 50000 | 20 | 360 | 110 | 280 | 1360 | 450 | 330 |
