重型旋转环
●适合在负载下频繁旋转
●与钢丝绳组合使用时,可释放钢丝绳在使用中产生的扭转力,并有一定的配重作用
●所有旋转环都经过检验并提供证书
●尺寸可定制
●安全系数5倍

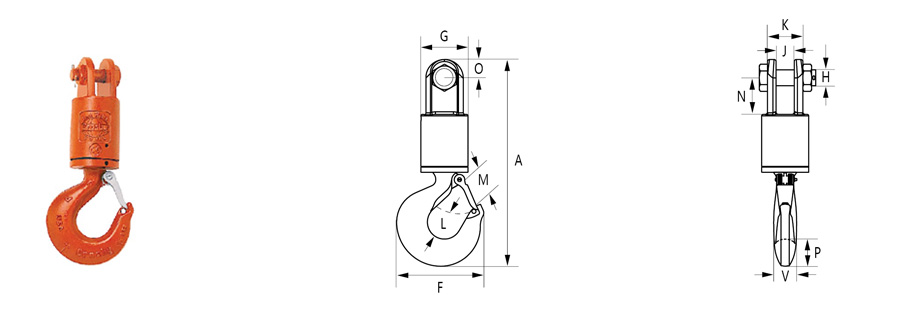

UC型重型旋转环
![](/web_upfile/ck_file/images/2023/10/UCXZXXZH900.jpg)
UC型重型旋转环
![](/web_upfile/ck_file/images/2023/10/UCXZXXZH900.jpg)
规格型号 | 额载 | 适用绳径mm | 尺寸(mm) | 自重 | |||||||||||
T | A | F | G | H | J | K | L | M | N | O | P | V | kg | ||
S-1-3 | 3 | 13 | 291 | 123 | 70.0 | 19.1 | 22.4 | 41.1 | 38.9 | 35.8 | 33.3 | 25.4 | 36.6 | 28.4 | 9.8 |
S-1-5 | 5 | 16 | 339 | 160 | 76.0 | 22.4 | 25.4 | 57.0 | 49.3 | 42.9 | 41.1 | 28.4 | 46.0 | 36.6 | 15.5 |
S-1-8 | 8.5 | 19 | 418 | 192 | 102 | 25.4 | 39.5 | 71.5 | 62.5 | 56.5 | 54.0 | 35.1 | 57.0 | 41.1 | 29.4 |
S-1-10 | 10 | 22 | 502 | 212 | 114 | 38.1 | 44.5 | 86.0 | 66.0 | 61.0 | 89.0 | 44.5 | 66.0 | 49.3 | 46.8 |
S-1-15 | 15 | 26 | 565 | 263 | 127 | 38.1 | 44.5 | 86.0 | 71.5 | 81.0 | 89.0 | 44.5 | 76.0 | 60.5 | 73.8 |
S-1-25 | 25 | - | 680 | 346 | 152 | 51.0 | 51.0 | 117 | 87.5 | 92.0 | 93.5 | 60.5 | 93.0 | 76.0 | 140 |
S-1-35 | 35 | - | 760 | 357 | 165 | 51.0 | 51.0 | 117 | 98.5 | 95.5 | 93.5 | 60.5 | 116 | 81.0 | 220 |
S-1-45 | 45 | - | 891 | 392 | 178 | 57.0 | 63.5 | 127 | 121 | 108 | 102 | 76.0 | 129 | 82.5 | 251 |

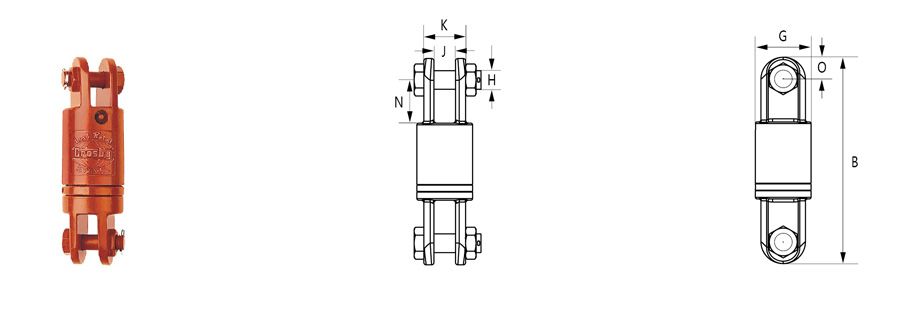

UU型重型旋转环
![](/web_upfile/ck_file/images/2023/10/UUXZXXZH900.jpg)
规格型号 | 额载 | 适用绳径mm | 尺寸(mm) | 自重 | ||||||
T | B | G | H | J | K | N | O | kg | ||
S-2-3 | 3 | 13 | 236 | 70 | 19.1 | 22.4 | 41.1 | 33.3 | 25.4 | 4.4 |
S-2-5 | 5 | 16 | 262 | 76 | 22.4 | 25.4 | 57 | 41.1 | 28.4 | 6.2 |
S-2-8 | 8.5 | 19 | 321 | 102 | 25.4 | 39.5 | 71.5 | 54 | 35.1 | 11.9 |
S-2-10 | 10 | 22 | 426 | 114 | 38.1 | 44.5 | 86 | 89 | 44.5 | 20.8 |
S-2-15 | 15 | 26 | 435 | 127 | 38.1 | 44.5 | 86 | 89 | 44.5 | 28.5 |
S-2-25 | 25 | - | 527 | 152 | 51 | 51 | 117 | 93.5 | 60.5 | 64 |
S-2-35 | 35 | - | 527 | 165 | 51 | 51 | 117 | 93.5 | 60.5 | 70 |
S-2-45 | 45 | - | 641 | 178 | 57 | 63.5 | 127 | 102 | 76 | 107 |

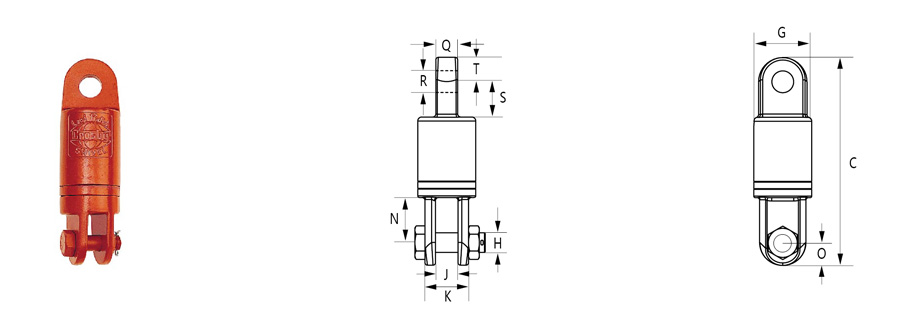

OU型重型旋转环
![](/web_upfile/ck_file/images/2023/10/OUXZXXZH900.jpg)
规格型号 | 额载 | 适用绳径mm | 尺寸(mm) | 自重 | ||||||||||
T | C | G | H | J | K | N | O | Q | R | S | T | kg | ||
S-4-3 | 3 | 13 | 237 | 70 | 19.1 | 22.4 | 41.1 | 33.3 | 25.4 | 19.1 | 26.2 | 28.4 | 31.8 | 4.1 |
S-4-5 | 5 | 16 | 256 | 76 | 22.4 | 25.4 | 57 | 41.1 | 28.4 | 25.4 | 32.5 | 31.8 | 31.8 | 5.6 |
S-4-8 | 8.5 | 19 | 311 | 102 | 25.4 | 39.5 | 71.5 | 54 | 35.1 | 31.8 | 35.8 | 41.1 | 38.1 | 13.2 |
S-4-10 | 10 | 22 | 409 | 114 | 38.1 | 44.5 | 86 | 89 | 44.5 | 42.9 | 42.9 | 70 | 47.8 | 20 |
S-4-15 | 15 | 26 | 425 | 127 | 38.1 | 44.5 | 86 | 89 | 44.5 | 49.3 | 51.5 | 70 | 54 | 27.7 |
S-4-25 | 25 | - | 546 | 152 | 51 | 51 | 117 | 93.5 | 60.5 | 57 | 58.5 | 98.5 | 60.5 | 61 |
S-4-35 | 35 | - | 546 | 165 | 51 | 51 | 117 | 93.5 | 60.5 | 57 | 58.5 | 98.5 | 60.5 | 68 |
S-4-45 | 45 | - | 657 | 178 | 57 | 63.5 | 127 | 102 | 76 | 63.5 | 64.5 | 102 | 76 | 102 |
