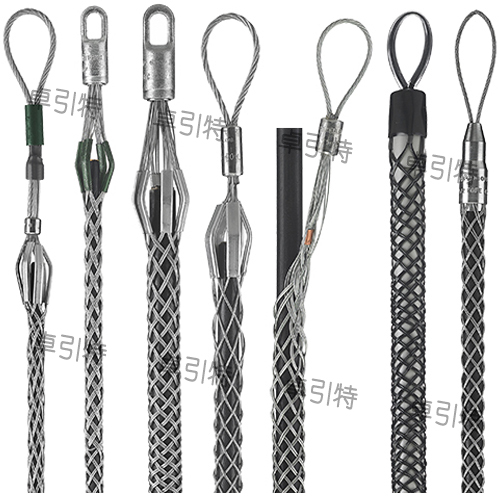

电缆网套
●网状结构,径向伸缩大,装拆容易,夹紧牢靠.其前端可根据实际使用情况设计接头,装夹方便
●适用于电力电缆、吊车钢丝绳等更换时的牵引安装.
●可根据钢丝绳、油管、电缆等直径的大小,膨胀或紧缩,可夹紧该范围的油管,电缆,钢丝绳等
●可选材质:镀锌钢丝绳、304不锈钢钢丝绳、316不锈钢钢丝绳
●可根据客户要求定制加工.
●钢丝绳结构不同,其额载不同,可根据客户要求的钢丝绳结构计算额载.
●牵引开始时,网套出现局部微小滑动属正常现象.
单眼型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT1-900.jpg)
标准型
双眼型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT2-900.jpg)
标准型
加长型
单眼带肩型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT3-900.jpg)
单耳侧拉型电缆网套
单耳侧拉带肩型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT5-900.jpg)
侧拉型电缆网套
![](/web_upfile/ck_file/images/2020/07/WT14-900.jpg)
单耳捆扎式电缆网套
![](/web_upfile/ck_file/images/2019/04/WT6-900.jpg)
双耳捆扎式电缆网套
![](/web_upfile/ck_file/images/2019/04/WT7-900.jpg)
单耳带肩捆扎式电缆网套
![](/web_upfile/ck_file/images/2019/04/WT8-900.jpg)
不锈钢接头型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT9-900.jpg)
单耳三腿电缆网套
![](/web_upfile/ck_file/images/2019/04/WT10-900.jpg)
开式电缆网套
![](/web_upfile/ck_file/images/2019/04/WT11-900.jpg)
双头双眼型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT12-900.jpg)

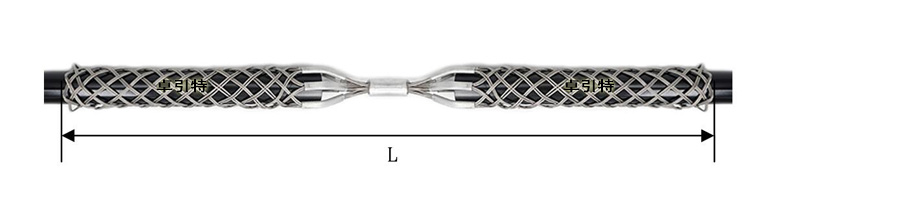

双网对接型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT13-900.jpg)
●适用于电力电缆、吊车钢丝绳等更换时的牵引安装.
●可根据钢丝绳、油管、电缆等直径的大小,膨胀或紧缩,可夹紧该范围的油管,电缆,钢丝绳等
●可选材质:镀锌钢丝绳、304不锈钢钢丝绳、316不锈钢钢丝绳
●可根据客户要求定制加工.
●钢丝绳结构不同,其额载不同,可根据客户要求的钢丝绳结构计算额载.
●牵引开始时,网套出现局部微小滑动属正常现象.

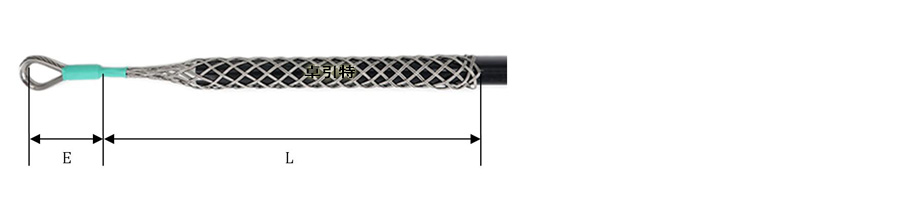

单眼型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT1-900.jpg)
标准型
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断kg | |||
E | L | 总长 | 镀锌绳 | 不锈钢绳 | |||
CGS0101 | 10-13 | 单股 | 75 | 230 | 305 | 684 | 549 |
CGS0102 | 13-19 | 单股 | 75 | 355 | 430 | 914 | 729 |
CGS0103 | 19-25 | 单股 | 105 | 405 | 510 | 2286 | 1827 |
CGS0104 | 25-38 | 单股 | 155 | 455 | 610 | 3200 | 2561 |
CGS0105 | 38-50 | 双股 | 200 | 535 | 735 | 4572 | 3659 |
CGS0106 | 50-63 | 双股 | 255 | 610 | 865 | 4572 | 3659 |
CGS0107 | 63-89 | 双股 | 305 | 685 | 990 | 5486 | 4388 |
CGS0108 | 89-115 | 双股 | 305 | 685 | 990 | 6399 | 5121 |
CGS0109 | 115-140 | 双股 | 305 | 685 | 990 | 6399 | 5121 |
加长型
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断 | ||
E | L | 总长 | kg | |||
CGS0110 | 15-20 | 单股 | 250 | 1250 | 1500 | 1116 |
CGS0111 | 20-30 | 单股 | 250 | 1250 | 1500 | 1377 |
CGS0112 | 20-30 | 双股 | 250 | 1250 | 1500 | 1791 |
CGS0113 | 30-40 | 单股 | 250 | 1250 | 1500 | 2295 |
CGS0114 | 30-40 | 双股 | 250 | 1250 | 1500 | 2754 |
CGS0115 | 40-50 | 双股 | 250 | 1500 | 1750 | 5337 |
CGS0116 | 50-60 | 双股 | 250 | 1500 | 1750 | 5967 |
CGS0117 | 60-70 | 双股 | 250 | 1500 | 1750 | 7011 |
CGS0118 | 70-90 | 双股 | 250 | 1500 | 1750 | 7299 |
CGS0129 | 90-110 | 双股 | 250 | 1500 | 1750 | 10647 |
CGS0120 | 110-130 | 双股 | 250 | 1500 | 1750 | 10647 |
CGS0121 | 120-150 | 双股 | 250 | 1500 | 1750 | 11475 |
CGS0122 | 140-180 | 双股 | 250 | 1500 | 1750 | 11475 |

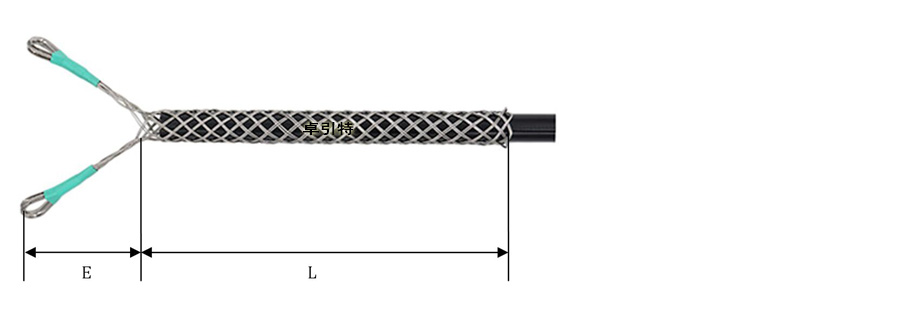

双眼型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT2-900.jpg)
标准型
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断kg | |||
E | L | 总长 | 镀锌绳 | 不锈钢绳 | |||
CGD0201 | 10-13 | 单股 | 75 | 230 | 305 | 684 | 549 |
CGD0202 | 13-19 | 单股 | 75 | 355 | 430 | 914 | 729 |
CGD0203 | 19-25 | 单股 | 105 | 405 | 510 | 2286 | 1827 |
CGD0204 | 25-38 | 单股 | 155 | 455 | 610 | 3200 | 2561 |
CGD0205 | 38-50 | 双股 | 200 | 535 | 735 | 4572 | 3659 |
CGD0206 | 50-63 | 双股 | 255 | 610 | 865 | 4572 | 3659 |
CGD0207 | 63-89 | 双股 | 305 | 685 | 990 | 5486 | 4388 |
CGD0208 | 89-115 | 双股 | 305 | 685 | 990 | 6399 | 5121 |
CGD0209 | 115-140 | 双股 | 305 | 685 | 990 | 6399 | 5121 |
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断 | ||
E | L | 总长 | kg | |||
CGD0210 | 15-20 | 单股 | 250 | 1250 | 1500 | 1116 |
CGD0211 | 20-30 | 单股 | 250 | 1250 | 1500 | 1377 |
CGD0212 | 20-30 | 双股 | 250 | 1250 | 1500 | 1791 |
CGD0213 | 30-40 | 单股 | 250 | 1250 | 1500 | 2295 |
CGD0214 | 30-40 | 双股 | 250 | 1250 | 1500 | 2754 |
CGD0215 | 40-50 | 双股 | 250 | 1500 | 1750 | 5337 |
CGD0216 | 50-60 | 双股 | 250 | 1500 | 1750 | 5967 |
CGD0217 | 60-70 | 双股 | 250 | 1500 | 1750 | 7011 |
CGD0218 | 70-90 | 双股 | 250 | 1500 | 1750 | 7299 |
CGD0219 | 90-110 | 双股 | 250 | 1500 | 1750 | 10647 |
CGD0220 | 110-130 | 双股 | 250 | 1500 | 1750 | 10647 |
CGD0221 | 120-150 | 双股 | 250 | 1500 | 1750 | 11475 |
CGD0222 | 140-180 | 双股 | 250 | 1500 | 1750 | 11475 |

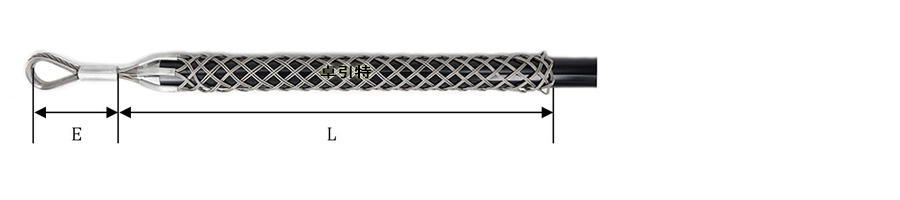

单眼带肩型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT3-900.jpg)
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断 | ||
E | L | 总长 | kg | |||
CGS0301 | 13-16 | 双股 | 112 | 534 | 646 | 1836 |
CGS0302 | 16-19 | 双股 | 130 | 610 | 740 | 2286 |
CGS0303 | 19-25 | 双股 | 130 | 610 | 740 | 2777 |
CGS0304 | 25-38 | 双股 | 130 | 610 | 740 | 3920 |
CGS0305 | 38-50 | 双股 | 130 | 610 | 740 | 6697 |
CGS0306 | 50-63 | 双股 | 130 | 610 | 740 | 7551 |
CGS0307 | 63-76 | 双股 | 130 | 610 | 740 | 10004 |
CGS0308 | 76-89 | 双股 | 130 | 610 | 740 | 10004 |
CGS0309 | 89-102 | 双股 | 140 | 660 | 800 | 12659 |

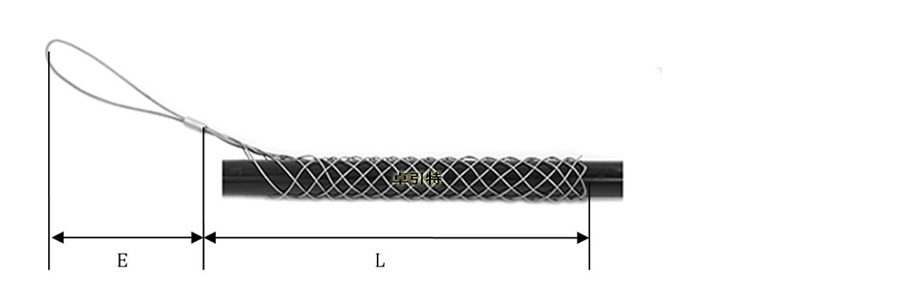

单耳侧拉型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT4-900.jpg)
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断kg | |||
E | L | 总长 | 镀锌绳 | 不锈钢绳 | |||
CGO0401 | 6-13 | 单股 | 75 | 230 | 305 | 684 | 549 |
CGO0402 | 13-19 | 单股 | 75 | 355 | 430 | 914 | 729 |
CGO0403 | 19-25 | 单股 | 105 | 405 | 510 | 2286 | 1827 |
CGO0404 | 25-38 | 单股 | 155 | 455 | 610 | 3200 | 2561 |
CGO0405 | 38-50 | 双股 | 200 | 535 | 735 | 4572 | 3659 |
CGO0406 | 50-63 | 双股 | 255 | 610 | 865 | 4572 | 3659 |
CGO0407 | 63-89 | 双股 | 305 | 685 | 990 | 5486 | 4388 |
CGO0408 | 89-115 | 双股 | 305 | 685 | 990 | 6399 | 5121 |
CGO0409 | 115-140 | 双股 | 305 | 685 | 990 | 6399 | 5121 |

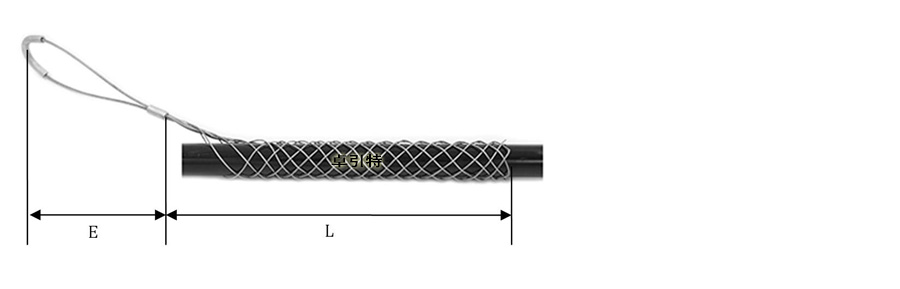

单耳侧拉带肩型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT5-900.jpg)
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断 | ||
E | L | 总长 | kg | |||
CGO0501 | 12 - 16 | 单股 | 75 | 247 | 322 | 230 |
CGO0502 | 16 - 19 | 单股 | 75 | 247 | 322 | 360 |
CGO0503 | 19 - 25 | 单股 | 105 | 331 | 436 | 423 |
CGO0504 | 25 - 31 | 单股 | 125 | 344 | 469 | 693 |
CGO0505 | 31 - 38 | 单股 | 155 | 382 | 537 | 693 |
CGO0506 | 38 - 44 | 双股 | 175 | 420 | 595 | 693 |
CGO0507 | 44 - 50 | 双股 | 200 | 509 | 709 | 936 |
CGO0508 | 50 - 63 | 双股 | 255 | 535 | 790 | 1386 |
CGO0509 | 63 - 76 | 双股 | 275 | 611 | 886 | 1386 |
CGO0510 | 76 - 89 | 双股 | 305 | 662 | 967 | 2039 |
CGO0511 | 89 - 102 | 双股 | 305 | 738 | 1043 | 2039 |

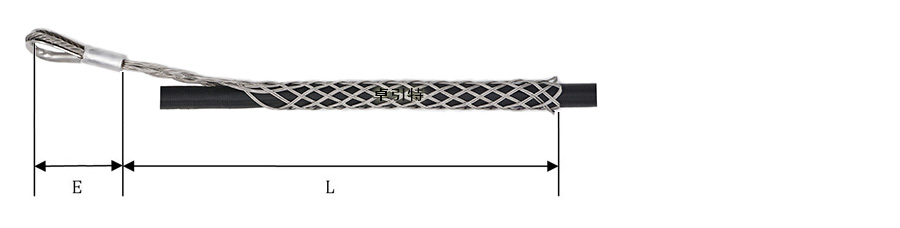

侧拉型电缆网套
![](/web_upfile/ck_file/images/2020/07/WT14-900.jpg)
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断kg | |||
E | L | 总长 | 镀锌绳 | 不锈钢绳 | |||
CGO0512 | 6-13 | 单股 | 75 | 230 | 305 | 684 | 549 |
CGO0513 | 13-19 | 单股 | 75 | 355 | 430 | 914 | 729 |
CGO0514 | 19-25 | 单股 | 105 | 405 | 510 | 2286 | 1827 |
CGO0515 | 25-38 | 单股 | 155 | 455 | 610 | 3200 | 2561 |
CGO0516 | 38-50 | 双股 | 200 | 535 | 735 | 4572 | 3659 |
CGO0517 | 50-63 | 双股 | 255 | 610 | 865 | 4572 | 3659 |
CGO0518 | 63-89 | 双股 | 305 | 685 | 990 | 5486 | 4388 |
CGO0519 | 89-115 | 双股 | 305 | 685 | 990 | 6399 | 5121 |
CGO0520 | 115-140 | 双股 | 305 | 685 | 990 | 6399 | 5121 |

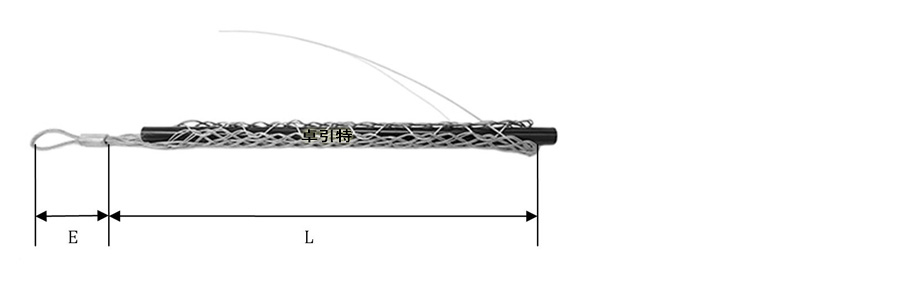

单耳捆扎式电缆网套
![](/web_upfile/ck_file/images/2019/04/WT6-900.jpg)
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断 | ||
E | L | 总长 | kg | |||
CGO0601 | 12 - 16 | 单股 | 75 | 247 | 322 | 230 |
CGO0602 | 16 - 19 | 单股 | 75 | 247 | 322 | 360 |
CGO0603 | 19 - 25 | 单股 | 105 | 331 | 436 | 423 |
CGO0604 | 25 - 31 | 单股 | 125 | 344 | 469 | 693 |
CGO0605 | 31 - 38 | 单股 | 155 | 382 | 537 | 693 |
CGO0606 | 38 - 44 | 双股 | 175 | 420 | 595 | 693 |
CGO0607 | 44 - 50 | 双股 | 200 | 509 | 709 | 936 |
CGO0608 | 50 - 63 | 双股 | 255 | 535 | 790 | 1386 |
CGO0609 | 63 - 76 | 双股 | 275 | 611 | 886 | 1386 |

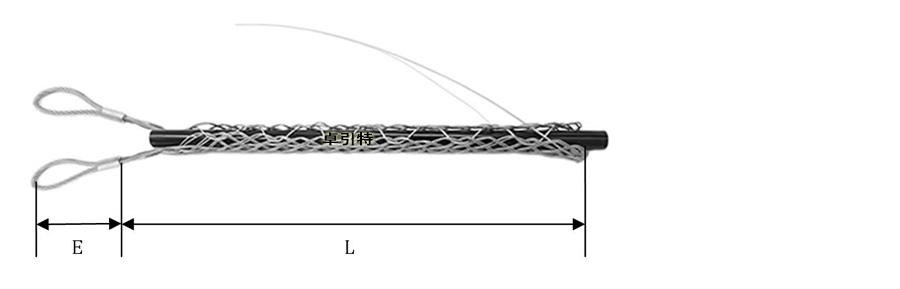

双耳捆扎式电缆网套
![](/web_upfile/ck_file/images/2019/04/WT7-900.jpg)
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断kg | |||
E | L | 总长 | 镀锌绳 | 不锈钢绳 | |||
CGL0701 | 10-13 | 单股 | 75 | 230 | 305 | 684 | 549 |
CGL0702 | 13-19 | 单股 | 75 | 355 | 430 | 914 | 729 |
CGL0703 | 19-25 | 单股 | 105 | 405 | 510 | 2286 | 1827 |
CGL0704 | 25-38 | 单股 | 155 | 455 | 610 | 3200 | 2561 |
CGL0705 | 38-50 | 双股 | 200 | 535 | 735 | 4572 | 3659 |
CGL0706 | 50-63 | 双股 | 255 | 610 | 865 | 4572 | 3659 |
CGL0707 | 63-89 | 双股 | 305 | 685 | 990 | 5486 | 4388 |
CGL0708 | 89-115 | 双股 | 305 | 685 | 990 | 6399 | 5121 |
CGL0709 | 115-140 | 双股 | 305 | 685 | 990 | 6399 | 5121 |

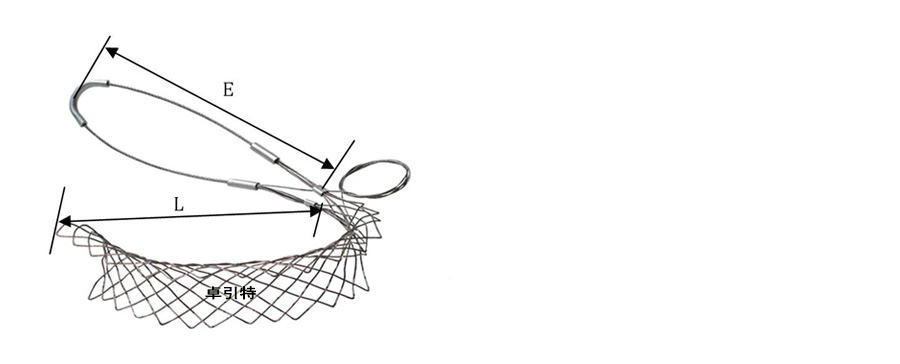

单耳带肩捆扎式电缆网套
![](/web_upfile/ck_file/images/2019/04/WT8-900.jpg)
规格型号 | 适用范围 | 绳股 | 尺寸mm | 破断 | ||
E | L | 总长 | kg | |||
CGL0801 | 12 - 16 | 单股 | 75 | 247 | 322 | 230 |
CGL0802 | 16 - 19 | 单股 | 75 | 247 | 322 | 360 |
CGL0803 | 19 - 25 | 单股 | 105 | 331 | 436 | 423 |
CGL0804 | 25 - 31 | 单股 | 125 | 344 | 469 | 693 |
CGL0805 | 31 - 38 | 单股 | 155 | 382 | 537 | 693 |
CGL0806 | 38 - 44 | 双股 | 175 | 420 | 595 | 693 |
CGL0807 | 44 - 50 | 双股 | 200 | 509 | 709 | 936 |
CGL0808 | 50 - 63 | 双股 | 255 | 535 | 790 | 1386 |
CGL0809 | 63 - 76 | 双股 | 275 | 611 | 886 | 1386 |

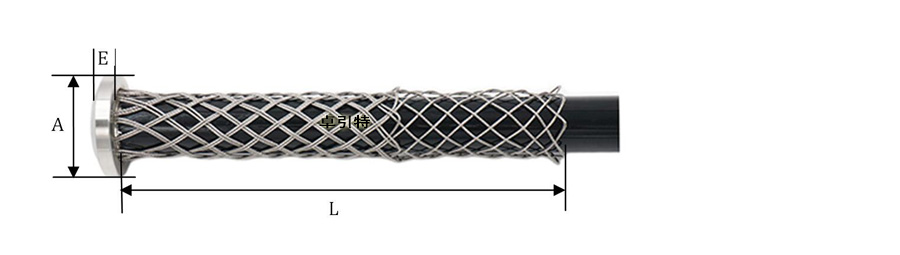

不锈钢接头型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT9-900.jpg)
规格型号 | 适用范围 | 尺寸mm | 破断 | ||
A | E | L | kg | ||
SST1001 | 5.1-6.4 | 31.8 | 3.2 | 76 | 203 |
SST1002 | 7.9-9.5 | 31.8 | 3.2 | 102 | 306 |
SST1003 | 10.4-12.7 | 31.8 | 3.2 | 127 | 306 |
SST1004 | 12.7-15.9 | 31.8 | 3.2 | 152 | 486 |
SST1005 | 15.5-19.1 | 31.8 | 3.2 | 178 | 486 |
SST1006 | 18.0-22.2 | 31.8 | 3.2 | 178 | 405 |
SST1007 | 19.6-23.8 | 31.8 | 3.2 | 203 | 324 |
SST1008 | 7.9-9.5 | 44.5 | 3.2 | 102 | 203 |
SST1009 | 10.4-12.7 | 44.5 | 3.2 | 127 | 306 |
SST1010 | 12.7-15.9 | 44.5 | 3.2 | 152 | 405 |
SST1011 | 15.5-19.1 | 44.5 | 3.2 | 178 | 405 |
SST1012 | 18.0-22.2 | 44.5 | 3.2 | 178 | 405 |
SST1013 | 20.8-25.4 | 44.5 | 3.2 | 203 | 405 |
SST1014 | 23.2-28.6 | 44.5 | 3.2 | 229 | 612 |
SST1015 | 25.9-31.8 | 44.5 | 3.2 | 254 | 405 |
SST1016 | 30.0-36.5 | 44.5 | 3.2 | 254 | 203 |
SST1017 | 12.7-15.9 | 57.2 | 3.2 | 152 | 405 |
SST1018 | 18.0-22.2 | 57.2 | 3.2 | 178 | 405 |
SST1019 | 23.2-28.6 | 57.2 | 3.2 | 229 | 612 |
SST1020 | 25.9-31.8 | 57.2 | 3.2 | 254 | 734 |
SST1021 | 31.0-38.1 | 57.2 | 3.2 | 279 | 734 |
SST1022 | 36.3-44.5 | 57.2 | 3.2 | 330 | 284 |
SST1023 | 30.0-49.2 | 57.2 | 3.2 | 356 | 140 |
SST1024 | 20.8-25.4 | 69.9 | 3.2 | 203 | 405 |
SST1025 | 25.9-31.8 | 69.9 | 3.2 | 254 | 612 |
SST1026 | 31.0-38.1 | 69.9 | 3.2 | 279 | 612 |
SST1027 | 36.3-44.5 | 69.9 | 3.2 | 330 | 734 |
SST1028 | 41.7-50.8 | 69.9 | 3.2 | 381 | 734 |
SST1029 | 46.7-57.2 | 69.9 | 3.2 | 406 | 612 |
SST1030 | 52.4-62.7 | 69.9 | 3.2 | 432 | 612 |
SST1031 | 34.9-44.5 | 82.6 | 3.2 | 330 | 815 |
SST1032 | 44.5-50.8 | 82.6 | 3.2 | 381 | 815 |
SST1033 | 46.7-57.2 | 82.6 | 3.2 | 406 | 815 |
SST1034 | 54.0-63.5 | 82.6 | 3.2 | 432 | 815 |

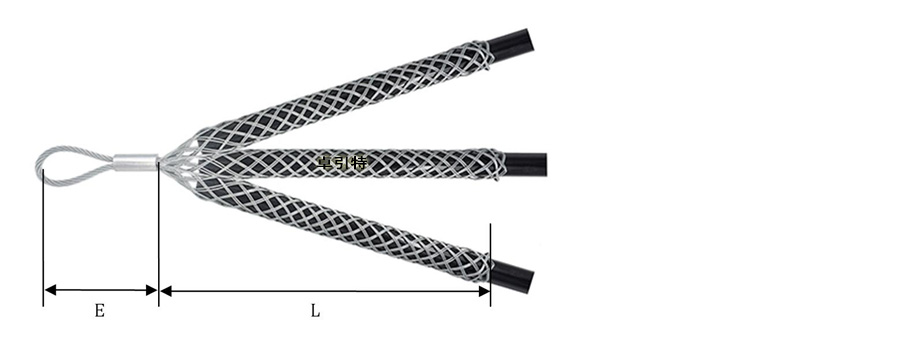

单耳三腿电缆网套
![](/web_upfile/ck_file/images/2019/04/WT10-900.jpg)
规格型号 | 适用范围 | 绳股 | 尺寸mm | ||
E | L | 总长 | |||
CGT1101 | 6-13 | 单股 | 75 | 230 | 305 |
CGT1102 | 13-19 | 单股 | 75 | 355 | 430 |
CGT1103 | 19-25 | 单股 | 105 | 405 | 510 |
CGT1104 | 25-38 | 单股 | 155 | 455 | 610 |
CGT1105 | 38-50 | 双股 | 200 | 535 | 735 |
CGT1106 | 50-63 | 双股 | 255 | 610 | 865 |
CGT1107 | 63-89 | 双股 | 305 | 685 | 990 |
CGT1108 | 89-115 | 双股 | 305 | 685 | 990 |
CGT1109 | 115-130 | 双股 | 305 | 685 | 990 |

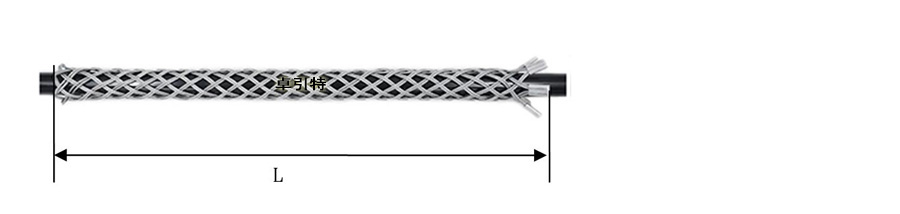

开式电缆网套
![](/web_upfile/ck_file/images/2019/04/WT11-900.jpg)
规格型号 | 适用范围 | 绳股 | L (mm) | 破断kg |
CGE1201 | 10-13 | 单股 | 380 | 684 |
CGE1202 | 13-19 | 单股 | 610 | 914 |
CGE1203 | 19-25 | 单股 | 710 | 2286 |
CGE1204 | 25-38 | 单股 | 815 | 3200 |
CGE1205 | 38-50 | 双股 | 915 | 4572 |
CGE1206 | 50-63 | 双股 | 1065 | 4572 |
CGE1207 | 63-89 | 双股 | 1220 | 5486 |
CGE1208 | 89-115 | 双股 | 1370 | 6399 |

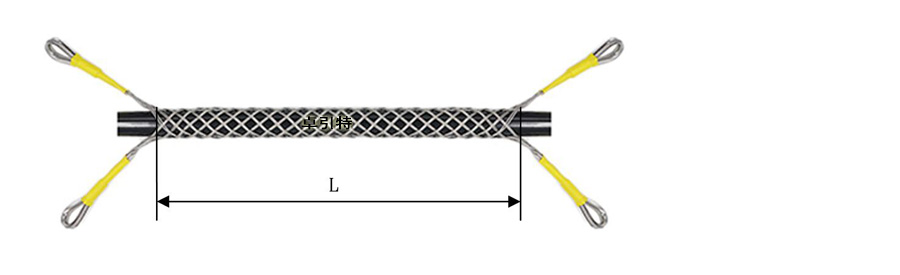

双头双眼型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT12-900.jpg)
规格型号 | 适用范围 | 绳股 | L (mm) | 破断kg |
CGF1301 | 6-9 | 双股 | 300 | 405 |
CGF1302 | 9-12 | 双股 | 300 | 468 |
CGF1303 | 10-15 | 双股 | 450 | 720 |
CGF1304 | 15-20 | 双股 | 600 | 720 |
CGF1305 | 20-25 | 双股 | 600 | 1170 |
CGF1306 | 25-30 | 双股 | 750 | 1440 |
CGF1307 | 25-35 | 双股 | 750 | 2340 |
CGF1308 | 30-40 | 双股 | 800 | 1440 |
CGF1309 | 40-50 | 双股 | 850 | 2340 |
CGF1310 | 50-60 | 双股 | 950 | 3960 |
CGF1311 | 60-75 | 双股 | 1050 | 4320 |
CGF1312 | 75-90 | 双股 | 1200 | 7020 |
CGF1313 | 90-115 | 双股 | 1400 | 6210 |
CGF1314 | 115-140 | 双股 | 1600 | 8370 |
CGF1315 | 140-180 | 双股 | 1850 | 11070 |
CGF1316 | 180-220 | 双股 | 2100 | 17370 |
双网对接型电缆网套
![](/web_upfile/ck_file/images/2019/04/WT13-900.jpg)
规格型号 | 适用范围 | 绳股 | L (mm) | 破断kg |
DCG1401 | 13-18 | 双股 | 1100 | 1440 |
DCG1402 | 18-25 | 双股 | 1320 | 1800 |
DCG1403 | 25-34 | 双股 | 1720 | 3150 |
DCG1404 | 35-42 | 双股 | 1920 | 3780 |
DCG1405 | 42-50 | 双股 | 2060 | 4680 |
DCG1406 | 50-60 | 双股 | 2420 | 5400 |
DCG1407 | 60-75 | 双股 | 2650 | 7200 |
DCG1408 | 75-90 | 双股 | 3320 | 8100 |
DCG1409 | 90-110 | 双股 | 3650 | 8100 |
DCG1410 | 110-130 | 双股 | 3900 | 8640 |
PDF文件下载
你的需求
需求与招标计划? 请告诉我们!
> 在线填写表单
