浇铸索具
●符合RR-S-550D标准
![](/web_upfile/ck_file/images/2023/10/HJGGXXK9005.jpg)

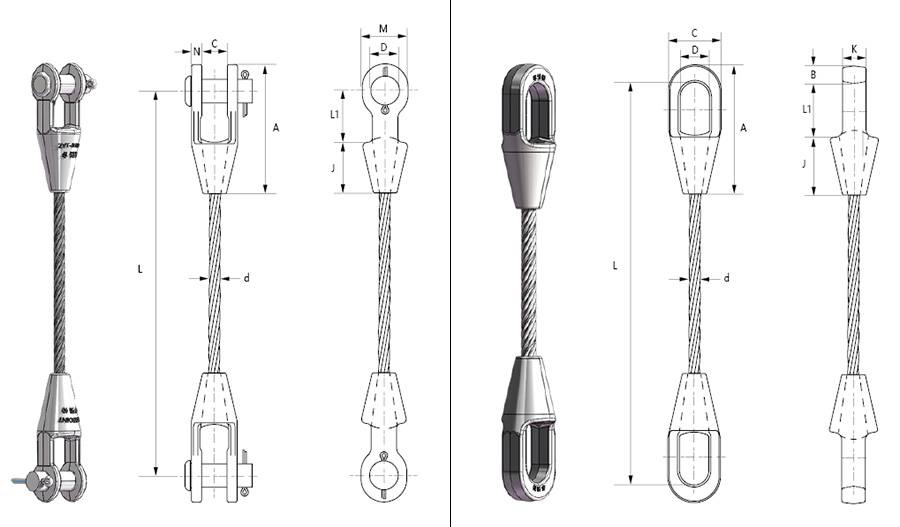

开式浇铸索具 闭式浇铸索具
开式浇铸索节
●浇铸工艺对钢丝绳无损伤,可以达到钢丝绳理论破断强度的百分之百
●长度延伸小,适用于尺寸要求较高的环境
●巴氏合金热浇铸和树脂冷浇铸两种形式
●其结构分为开式、闭式、开闭式组合
●可根据用户需求进行钢丝绳浇筑索具的非标设计与制作
●表中额载计算依据:6-10mm选用GB/T20118-2017标准中6x19M+IWRC-1770Mpa钢丝绳,13-60mm选用GB 8918-2006标准中6×36WS+IWR-1770Mpa钢丝绳,66-102mm选用GB/T20118-2017标准中8x61M+IWR-1770Mpa钢丝绳,也可根据要求定制额载
●接头可提供锻件和焊接件,当无特殊要求时默认为焊接件
●浇铸索具长度L根据客户要求
![](/web_upfile/ck_file/images/2023/10/HJGGXXK9005.jpg)
开式浇铸索具 闭式浇铸索具
产品型号 | 接头型号 | 绳径mm | 开式接头尺寸mm | 闭式接头尺寸mm | 额载 | |||||||||||||
开式 | 闭式 | d | A | C | D | J | L1 | M | N | A | B | C | D | J | K | L1 | T | |
KJ06 | BJ06 | 1/4 | 6 | 116 | 19.1 | 17.5 | 57 | 39.6 | 33.3 | 9.1 | 116 | 12.7 | 39.6 | 22.4 | 57.2 | 12.7 | 46 | 0.4 |
KJ10 | BJ10 | 5/16~3/8 | 10 | 123 | 20.6 | 20.6 | 57 | 44.5 | 38.1 | 11.2 | 125 | 15.8 | 42.9 | 24.6 | 57.2 | 17.5 | 52.3 | 1.2 |
KJ13 | BJ13 | 7/16~1/2 | 13 | 141 | 25.4 | 25.4 | 63.5 | 51.0 | 47.8 | 12.7 | 140 | 17.5 | 51 | 29.5 | 63.5 | 22.4 | 58.7 | 2.2 |
KJ16 | BJ16 | 9/16~5/8 | 16 | 171 | 31.8 | 30.2 | 76 | 63.5 | 57 | 14.2 | 162 | 20.6 | 67 | 35.8 | 76.2 | 25.4 | 65 | 3.3 |
KJ18 | BJ18 | 3/4 | 18 | 202 | 38.1 | 35.1 | 89 | 76 | 66.5 | 15.7 | 194 | 26.9 | 76.2 | 42.2 | 89 | 31.8 | 77.7 | 4.2 |
KJ22 | BJ22 | 7/8 | 22 | 235 | 44.5 | 41.4 | 102 | 89 | 79.5 | 20.3 | 226 | 33.3 | 92 | 49.3 | 102 | 38.1 | 90.5 | 6.2 |
KJ26 | BJ26 | 1 | 26 | 268 | 51 | 51 | 114 | 102 | 95.5 | 22.4 | 254 | 36.6 | 105 | 58.5 | 114 | 44.5 | 103 | 8.7 |
KJ30 | BJ30 | 1-1/8 | 30 | 300 | 57 | 57 | 127 | 117 | 105 | 25.4 | 283 | 39.6 | 114 | 65 | 127 | 51 | 116 | 11.6 |
KJ36 | BJ36 | 1-1/4-1-3/8 | 36 | 335 | 63.5 | 63.5 | 140 | 127 | 121 | 28.7 | 309 | 41.4 | 127 | 71 | 138 | 56.5 | 129 | 16.7 |
KJ38 | BJ38 | 1-1/2 | 38 | 384 | 76 | 70 | 152 | 152 | 137 | 30.2 | 355 | 49.3 | 137 | 81 | 151 | 62.5 | 155 | 18.6 |
KJ42 | BJ42 | 1-5/8 | 42 | 413 | 76 | 76 | 165 | 165 | 146 | 33.3 | 390 | 54.0 | 146 | 82.5 | 165 | 70 | 171 | 22.7 |
KJ48 | BJ48 | 1-3/4~1-7/8 | 48 | 464 | 89 | 89 | 191 | 178 | 165 | 39.6 | 445 | 55.5 | 171 | 95.5 | 191 | 76.2 | 198 | 29.6 |
KJ54 | BJ54 | 2~2-1/8 | 54 | 546 | 102 | 95.5 | 216 | 229 | 178 | 46 | 505 | 62 | 194 | 111 | 216 | 82.5 | 224 | 37.6 |
KJ60 | BJ60 | 2-1/4~2-3/8 | 60 | 597 | 114 | 108 | 229 | 254 | 197 | 54 | 546 | 70 | 216 | 127 | 229 | 92 | 248 | 46.3 |
KJ66 | BJ66 | 2-1/2~2-5/8 | 66 | 648 | 127 | 121 | 248 | 274 | 216 | 60.5 | 597 | 79.5 | 241 | 140 | 248 | 102 | 270 | 46.7 |
KJ72 | BJ72 | 2-3/4~2-7/8 | 72 | 692 | 133 | 127 | 279 | 279 | 229 | 73 | 645 | 79.5 | 273 | 159 | 279 | 124 | 286 | 55.7 |
KJ80 | BJ80 | 3~3-1/8 | 80 | 737 | 146 | 133 | 305 | 287 | 241 | 76 | 689 | 85.6 | 292 | 171 | 305 | 133 | 298 | 68.6 |
KJ86 | BJ86 | 3-1/4~3-3/8 | 86 | 784 | 159 | 140 | 330 | 300 | 254 | 79 | 743 | 102 | 311 | 184 | 330 | 146 | 311 | 79.4 |
KJ92 | BJ92 | 3-1/2~3-5/8 | 92 | 845 | 171 | 152 | 356 | 318 | 274 | 82.5 | 787 | 102 | 330 | 197 | 356 | 159 | 330 | 90.8 |
KJ102 | BJ102 | 3-3/4~4 | 102 | 921 | 191 | 178 | 381 | 343 | 318 | 89 | 845 | 108 | 362 | 216 | 381 | 178 | 356 | 111.6 |

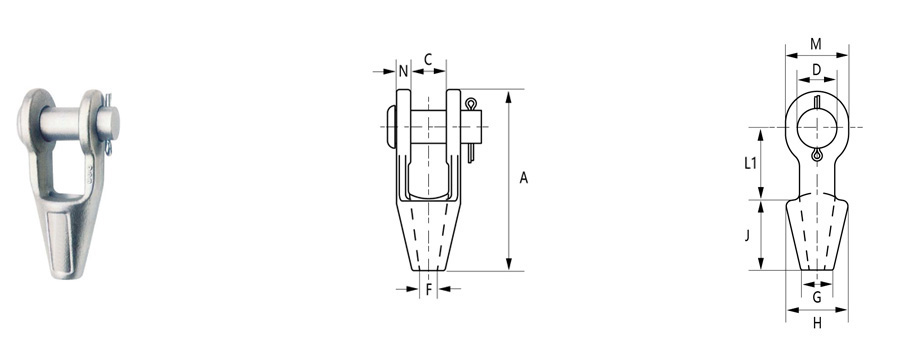

开式浇铸索节
●符合RR-S-550D 标准
●锻造工艺,轻便高强度
●与钢丝绳浇铸后可达到钢丝绳强度的 100%
●适用 6 x 7、6 x 19 、6 x 37、IPS 或 XIP (EIP)、XXIP (EEIP)、RRL、FC 、IWRC 钢丝绳
●表面镀锌处理
![](/web_upfile/ck_file/images/2023/10/KSJZSJ9001.jpg)
闭式浇铸索节
浇铸索具使用说明![](/web_upfile/ck_file/images/2023/10/KSJZSJ9001.jpg)
规格型号 | 适用绳径 | 尺寸 (mm) | 额载 | 自重 | ||||||||||
mm | in | A | C | D | F | G | H | J | L1 | M | N | T | kg | |
G-416-7 | 6~7 | 1/4 | 116 | 19.1 | 17.5 | 9.65 | 17.5 | 39.6 | 57 | 39.6 | 33.3 | 9.1 | 4.5 | 0.5 |
G-416-10 | 8~10 | 5/16~3/8 | 123 | 20.6 | 20.6 | 12.7 | 20.6 | 42.9 | 57 | 44.5 | 38.1 | 11.2 | 12 | 0.59 |
G-416-13 | 11~13 | 7/16~1/2 | 141 | 25.4 | 25.4 | 14.2 | 23.9 | 47.8 | 63.5 | 51.0 | 47.8 | 12.7 | 20 | 1.02 |
G-416-16 | 14~16 | 9/16~5/8 | 171 | 31.8 | 30.2 | 17.5 | 28.7 | 57 | 76 | 63.5 | 57 | 14.2 | 27 | 1.63 |
G-416-18 | 18 | 3/4 | 202 | 38.1 | 35.1 | 20.6 | 31.8 | 66.5 | 89 | 76 | 66.5 | 15.7 | 43 | 2.64 |
G-416-22 | 20~22 | 7/8 | 235 | 44.5 | 41.4 | 23.9 | 38.1 | 82.5 | 102 | 89 | 79.5 | 20.3 | 55 | 4.38 |
G-416-26 | 24~26 | 1 | 268 | 51 | 51 | 28.7 | 44.5 | 95.5 | 114 | 102 | 95.5 | 22.4 | 78 | 7.03 |
G-416-30 | 28~30 | 1-1/8 | 300 | 57 | 57 | 31.8 | 51 | 105 | 127 | 117 | 105 | 25.4 | 92 | 9.75 |
G-416-36 | 32~36 | 1-1/4-1-3/8 | 335 | 63.5 | 63.5 | 38.1 | 57 | 121 | 140 | 127 | 121 | 28.7 | 136 | 14.1 |
G-416-38 | 38 | 1-1/2 | 384 | 76 | 70 | 41.4 | 70 | 133 | 152 | 152 | 137 | 30.2 | 170 | 21.4 |
G-416-42 | 40~42 | 1-5/8 | 413 | 76 | 76 | 44.5 | 76 | 140 | 165 | 165 | 146 | 33.3 | 188 | 24.9 |
G-416-48 | 44~48 | 1-3/4~1-7/8 | 464 | 89 | 89 | 51 | 79.5 | 162 | 191 | 178 | 165 | 39.6 | 268 | 37.2 |
G-416-54 | 50~54 | 2~2-1/8 | 546 | 102 | 95.5 | 57 | 95.5 | 187 | 216 | 229 | 178 | 46 | 291 | 59 |
G-416-60 | 56~60 | 2-1/4~2-3/8 | 597 | 114 | 108 | 63.5 | 102 | 210 | 229 | 254 | 197 | 54 | 360 | 76 |
G-416-67 | 64~67 | 2-1/2~2-5/8 | 648 | 127 | 121 | 73 | 114 | 235 | 248 | 274 | 216 | 60.5 | 424 | 114 |
G-416-73 | 70~73 | 2-3/4~2-7/8 | 692 | 133 | 127 | 79 | 124 | 267 | 279 | 279 | 229 | 73 | 511 | 143 |
G-416-80 | 75~80 | 3~3-1/8 | 737 | 146 | 133 | 86 | 133 | 282 | 305 | 287 | 241 | 76 | 563 | 172 |
G-416-86 | 82~86 | 3-1/4~3-3/8 | 784 | 159 | 140 | 92 | 146 | 302 | 330 | 300 | 254 | 79 | 722 | 197 |
G-416-92 | 88~92 | 3-1/2~3-5/8 | 845 | 171 | 152 | 98.5 | 165 | 314 | 356 | 318 | 274 | 82.5 | 779 | 255 |
G-416-102 | 94~102 | 3-3/4~4 | 921 | 191 | 178 | 108 | 184 | 346 | 381 | 343 | 318 | 89 | 875 | 355 |

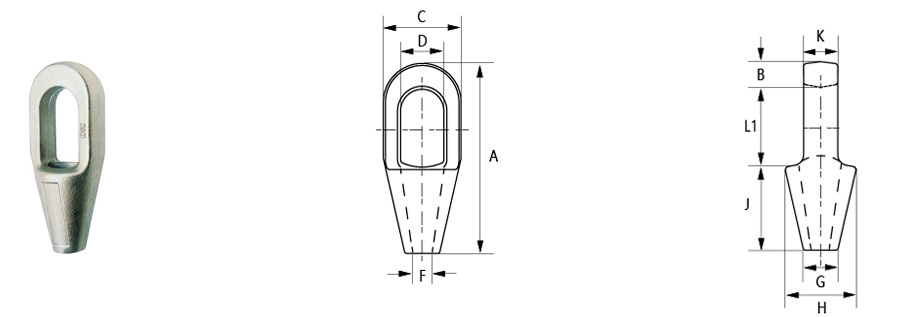

闭式浇铸索节
●符合RR-S-550D 标准
●锻造工艺,轻便高强度
●与钢丝绳浇铸后可达到钢丝绳强度的 100%
●适用 6 x 7、6 x 19 、6 x 37、IPS 或 XIP (EIP)、XXIP (EEIP)、RRL、FC 、IWRC 钢丝绳
●表面镀锌处理
![](/web_upfile/ck_file/images/2023/10/BSJZSJ9001.jpg)
![](/web_upfile/ck_file/images/2023/10/BSJZSJ9001.jpg)
规格型号 | 适用绳径 | 尺寸 (mm) | 额载 | 自重 | ||||||||||
mm | in | A | B | C | D | F | G | H | J | K | L1 | T | kg | |
G-417-7 | 6~7 | 1/4 | 116 | 12.7 | 39.6 | 22.4 | 9.65 | 17.5 | 39.6 | 57.2 | 12.7 | 46 | 4.5 | 0.23 |
G-417-10 | 8~10 | 5/16~3/8 | 125 | 15.8 | 42.9 | 24.6 | 12.7 | 20.6 | 42.9 | 57.2 | 17.5 | 52.3 | 12 | 0.34 |
G-417-13 | 11~13 | 7/16~1/2 | 140 | 17.5 | 51 | 29.5 | 14.2 | 23.9 | 51 | 63.5 | 22.4 | 58.7 | 20 | 0.68 |
G-417-16 | 14~16 | 9/16~5/8 | 162 | 20.6 | 67 | 35.8 | 17.5 | 30.2 | 67 | 76.2 | 25.4 | 65 | 30.8 | 1.13 |
G-417-18 | 18 | 3/4 | 194 | 26.9 | 76.2 | 42.2 | 22.4 | 33.3 | 70 | 89 | 31.8 | 77.7 | 43.5 | 1.92 |
G-417-22 | 20~22 | 7/8 | 226 | 33.3 | 92 | 49.3 | 25.4 | 38.1 | 82.5 | 102 | 38.1 | 90.5 | 65.3 | 3.28 |
G-417-26 | 24~26 | 1 | 254 | 36.6 | 105 | 58.5 | 28.7 | 44.5 | 95.5 | 114 | 44.5 | 103 | 81.6 | 4.76 |
G-417-30 | 28~30 | 1-1/8 | 283 | 39.6 | 114 | 65 | 31.8 | 51 | 105 | 127 | 51 | 116 | 100 | 6.46 |
G-417-36 | 32~36 | 1-1/4-1-3/8 | 309 | 41.4 | 127 | 71 | 38.1 | 58.5 | 119 | 138 | 56.5 | 129 | 136 | 8.95 |
G-417-38 | 38 | 1-1/2 | 355 | 49.3 | 137 | 81 | 41.4 | 70.5 | 132 | 151 | 62.5 | 155 | 170 | 13.24 |
G-417-42 | 40~42 | 1-5/8 | 390 | 54.0 | 146 | 82.5 | 44.5 | 76.2 | 140 | 165 | 70 | 171 | 188 | 16.32 |
G-417-48 | 44~48 | 1-3/4~1-7/8 | 445 | 55.5 | 171 | 95.5 | 51 | 79.5 | 162 | 191 | 76.2 | 198 | 268 | 25.96 |
G-417-54 | 50~54 | 2~2-1/8 | 505 | 62 | 194 | 111 | 57.2 | 95.5 | 187 | 216 | 82.5 | 224 | 309 | 35.83 |
G-417-60 | 56~60 | 2-1/4~2-3/8 | 546 | 70 | 216 | 127 | 66.8 | 105 | 210 | 229 | 92 | 248 | 360 | 47.62 |
G-417-67 | 64~67 | 2-1/2~2-5/8 | 597 | 79.5 | 241 | 140 | 74.5 | 114 | 235 | 248 | 102 | 270 | 424 | 63.5 |
G-417-73 | 70~73 | 2-3/4~2-7/8 | 645 | 79.5 | 273 | 159 | 79.5 | 124 | 259 | 279 | 124 | 286 | 549 | 99.79 |
G-417-80 | 75~80 | 3~3-1/8 | 689 | 85.6 | 292 | 171 | 86 | 133 | 292 | 305 | 133 | 298 | 656 | 125 |
G-417-86 | 82~86 | 3-1/4~3-3/8 | 743 | 102 | 311 | 184 | 92 | 146 | 311 | 330 | 146 | 311 | 750 | 142 |
G-417-92 | 88~92 | 3-1/2~3-5/8 | 787 | 102 | 330 | 197 | 98.5 | 160 | 330 | 356 | 159 | 330 | 820 | 181 |
G-417-102 | 94~102 | 3-3/4~4 | 845 | 108 | 362 | 216 | 108 | 184 | 362 | 381 | 178 | 356 | 1005 | 246 |
