钢丝绳重型套环
●钢丝绳重型套环符合GB/T 5974.2-2006标准.
●钢丝绳重型套环可装配到钢丝绳压制索具绳扣中,可明显延长钢丝绳压制索具的使用寿命.
●比标准压制钢丝绳索具长度更精确.
●耐磨损,降低钢丝绳消耗成本.
●适用温度-40℃-150℃.
![](/web_upfile/ck_file/images/2023/06/ZXTH9001.png)
●钢丝绳重型套环可装配到钢丝绳压制索具绳扣中,可明显延长钢丝绳压制索具的使用寿命.
●比标准压制钢丝绳索具长度更精确.
●耐磨损,降低钢丝绳消耗成本.
●适用温度-40℃-150℃.
![](/web_upfile/ck_file/images/2023/06/ZXTH9001.png)

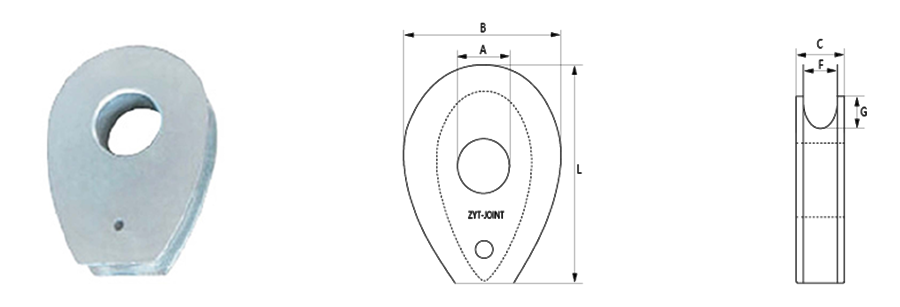

规格型号 | 适用绳径 | 尺寸 (mm) | 自重 | |||||
mm | F | C | A | B | L | G | kg | |
ZTH-8 | 8 | 9.2 | 14 | 20 | 40 | 56 | 6 | 0.11 |
ZTH-10 | 10 | 11.5 | 17.5 | 25 | 50 | 70 | 7.5 | 0.2 |
ZTH-12 | 12 | 13.8 | 21 | 30 | 60 | 84 | 9 | 0.38 |
ZTH-14 | 14 | 16.1 | 24.5 | 35 | 70 | 98 | 10.5 | 0.51 |
ZTH-16 | 16 | 18.4 | 28 | 40 | 80 | 112 | 12 | 0.88 |
ZTH-18 | 18 | 20.7 | 31.5 | 45 | 90 | 126 | 13.5 | 1.11 |
ZTH-20 | 20 | 23 | 35 | 50 | 100 | 140 | 15 | 1.54 |
ZTH-22 | 22 | 25.3 | 38.5 | 55 | 110 | 154 | 16.5 | 2.16 |
ZTH-24 | 24 | 27.6 | 42 | 60 | 120 | 168 | 18 | 2.98 |
ZTH-26 | 26 | 29.9 | 45.5 | 65 | 130 | 182 | 19.5 | 3.55 |
ZTH-28 | 28 | 32.2 | 49 | 70 | 140 | 196 | 21 | 4.11 |
ZTH-32 | 32 | 36.8 | 56 | 80 | 160 | 224 | 24 | 5.97 |
ZTH-36 | 36 | 41.4 | 63 | 90 | 180 | 252 | 27 | 8.55 |
ZTH-40 | 40 | 46 | 70 | 100 | 200 | 280 | 30 | 11.65 |
ZTH-44 | 44 | 50.6 | 77 | 110 | 220 | 308 | 33 | 17.65 |
ZTH-48 | 48 | 55.2 | 84 | 120 | 240 | 336 | 36 | 21 |
ZTH-52 | 52 | 59.8 | 91 | 130 | 260 | 364 | 39 | 27.8 |
ZTH-56 | 56 | 64.4 | 98 | 140 | 280 | 392 | 42 | 33.5 |
ZTH-60 | 60 | 69 | 105 | 150 | 300 | 420 | 45 | 42 |
