闭式压制索具
●符合JG5091-1997标准

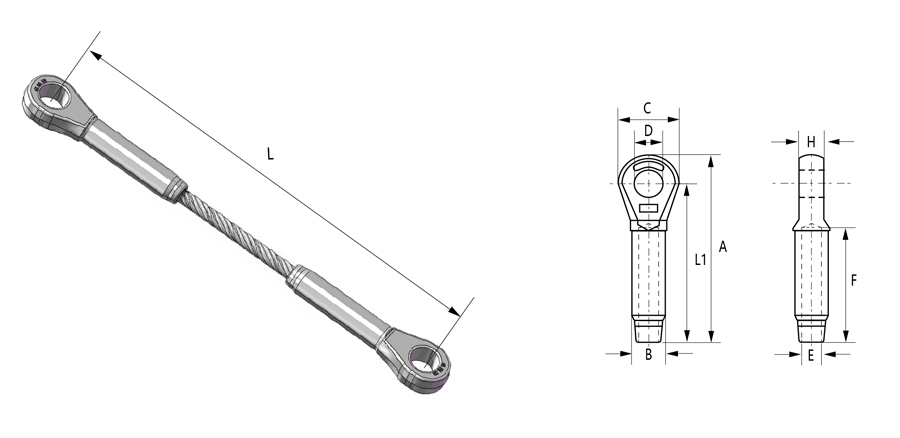

![](/web_upfile/ck_file/images/2023/10/BSYZSJ900.jpg)
●压制后的强度可达到钢丝绳破断强度的90%
●球化退火控制硬度。
●压制索节的直柄部包含一部分已经机械加工缩小的区域,尺寸等于“压制后”的尺寸
●表中额载计算依据为:6-10mm选用GB/T20118-2017标准中6x19M+IWRC-1770Mpa钢丝绳,12-52mm选用GB 8918-2006标准中6×36WS+IWR-1770Mpa钢丝绳,适用绳径范围中大值为依据,也可以根据客户要求定制额载
●钢丝绳索具长度L根据客户要求定制
●安全系数5倍
![](/web_upfile/ck_file/images/2023/10/BSYZSJ900.jpg)
规格型号 | 绳径 | 尺寸(mm) | 压制后 | 额载 | 接头自重 | ||||||||
mm | in | A | B | C | D | E | F | H | L1 | B | T | kg | |
S-502-6 | 6 | 1/4 | 109 | 12.7 | 35.1 | 19.1 | 6.85 | 54.0 | 12.7 | 89.0 | 11.7 | 0.43 | 0.15 |
S-502-8 | 8 | 5/16 | 138 | 19.6 | 41.1 | 22.4 | 8.65 | 81.0 | 17.0 | 114 | 18.0 | 0.77 | 0.34 |
S-502-10 | 9-10 | 3/8 | 138 | 19.6 | 41.1 | 22.4 | 10.4 | 81.0 | 17.0 | 114 | 18.0 | 1.2 | 0.33 |
S-502-12 | 11-12 | 7/16 | 176 | 24.9 | 51.0 | 26.9 | 12.2 | 108 | 21.8 | 146 | 23.1 | 1.9 | 0.64 |
S-502-13 | 13 | 1/2 | 176 | 24.9 | 51.0 | 26.9 | 14.0 | 108 | 21.8 | 146 | 23.1 | 2.2 | 0.64 |
S-502-14 | 14 | 9/16 | 220 | 31.8 | 60.5 | 31.8 | 15.5 | 135 | 28.7 | 184 | 29.5 | 2.5 | 1.32 |
S-502-16 | 16 | 5/8 | 220 | 31.8 | 60.5 | 31.8 | 17.0 | 135 | 28.7 | 184 | 29.5 | 3.3 | 1.29 |
S-502-20 | 18-20 | 3/4 | 261 | 39.4 | 73.0 | 36.6 | 20.3 | 162 | 33.3 | 219 | 36.1 | 5.1 | 2.27 |
S-502-22 | 22 | 7/8 | 303 | 43.2 | 79.0 | 42.9 | 23.9 | 189 | 38.1 | 257 | 39.4 | 6.2 | 3.08 |
S-502-26 | 24-26 | 1 | 344 | 50.5 | 92.0 | 52.5 | 26.9 | 216 | 44.5 | 292 | 45.7 | 8.7 | 4.72 |
S-502-28 | 28 | 1-1/8 | 382 | 57.0 | 102 | 58.5 | 30.2 | 243 | 51.0 | 324 | 52.0 | 10.1 | 6.72 |
S-502-32 | 32 | 1-1/4 | 430 | 64.5 | 114 | 65.0 | 33.8 | 270 | 57.0 | 365 | 58.5 | 13.2 | 9.78 |
S-502-36 | 34-36 | 1-3/8 | 473 | 71.0 | 127 | 65.0 | 36.8 | 297 | 57.0 | 400 | 65.0 | 16.7 | 12.9 |
S-502-40 | 38-40 | 1-1/2 | 511 | 78.0 | 140 | 71.5 | 40.1 | 324 | 63.5 | 432 | 71.5 | 20.6 | 17.3 |
S-502-44 | 44 | 1-3/4 | 598 | 86.0 | 159 | 90.5 | 47.2 | 378 | 76.0 | 508 | 77.5 | 24.9 | 23.1 |
S-502-52 | 48-52 | 2 | 702 | 100 | 184 | 96.5 | 53.5 | 432 | 82.5 | 584 | 90.5 | 34.7 | 40.5 |
