开式压制索具
●符合JG5091-1997标准

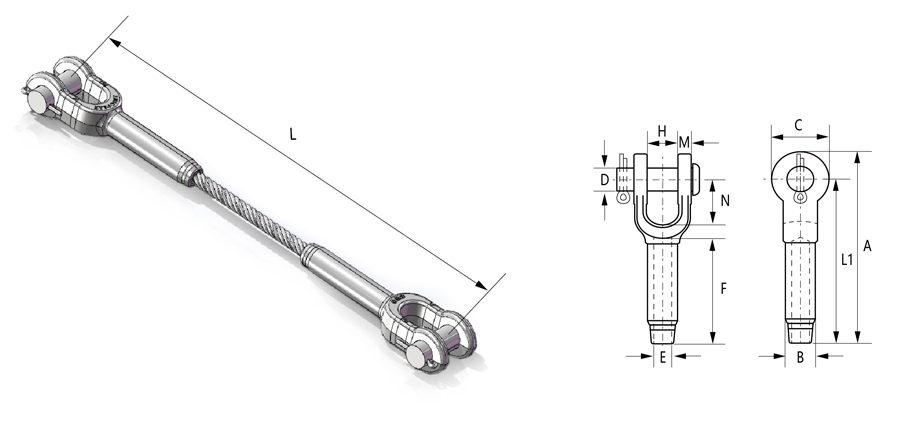

![](/web_upfile/ck_file/images/2023/10/KSYZSJ900.jpg)
●压制后的强度可达到钢丝绳破断强度的90%
●球化退火控制硬度。
●压制索节的直柄部包含一部分已经机械加工缩小的区域,尺寸等于“压制后”的尺寸
●表中额载计算依据为:6-10mm选用GB/T20118-2017标准中6x19M+IWRC-1770Mpa钢丝绳,12-52mm选用GB 8918-2006标准中6×36WS+IWR-1770Mpa钢丝绳,适用绳径范围中大值为依据,也可以根据客户要求定制额载
●钢丝绳索具长度L根据客户要求定制
●安全系数5倍
![](/web_upfile/ck_file/images/2023/10/KSYZSJ900.jpg)
规格型号 | 绳径 | 尺寸(mm) | 压制后 | 额载 | 接头自重 | ||||||||||
mm | in | A | B | C | D | E | F | H | L1 | M | N | B | T | kg | |
S-501-6 | 6 | 1/4 | 122 | 12.7 | 35.1 | 17.5 | 6.85 | 54.0 | 17.5 | 102 | 9.65 | 38.1 | 11.7 | 0.43 | 0.24 |
S-501-8 | 8 | 5/16 | 159 | 19.6 | 41.1 | 20.6 | 8.65 | 81.0 | 20.6 | 135 | 11.9 | 44.5 | 18.0 | 0.77 | 0.51 |
S-501-10 | 9-10 | 3/8 | 159 | 19.6 | 41.1 | 20.6 | 10.4 | 81.0 | 20.6 | 135 | 11.9 | 44.5 | 18.0 | 1.2 | 0.59 |
S-501-12 | 11-12 | 7/16 | 198 | 24.9 | 51.0 | 25.4 | 12.2 | 108 | 25.4 | 170 | 14.2 | 51.0 | 23.1 | 1.9 | 0.94 |
S-501-13 | 13 | 1/2 | 198 | 24.9 | 51.0 | 25.4 | 14.0 | 108 | 25.4 | 170 | 14.2 | 51.0 | 23.1 | 2.2 | 0.94 |
S-501-14 | 14 | 9/16 | 241 | 31.8 | 60.5 | 30.2 | 15.5 | 135 | 31.8 | 207 | 17.3 | 57.0 | 29.5 | 2.5 | 2.12 |
S-501-16 | 16 | 5/8 | 241 | 31.8 | 60.5 | 30.2 | 17.0 | 135 | 31.8 | 207 | 17.3 | 57.0 | 29.5 | 3.3 | 2.05 |
S-501-20 | 18-20 | 3/4 | 294 | 39.4 | 70.0 | 35.1 | 20.3 | 162 | 38.1 | 254 | 19.8 | 70.0 | 36.1 | 5.1 | 3.62 |
S-501-22 | 22 | 7/8 | 341 | 43.2 | 79.5 | 41.1 | 23.9 | 189 | 44.5 | 295 | 23.9 | 82.5 | 39.4 | 6.2 | 5.23 |
S-501-26 | 24-26 | 1 | 393 | 50.5 | 93.5 | 51.0 | 26.9 | 216 | 51.0 | 340 | 26.9 | 95.5 | 45.7 | 8.7 | 8.07 |
S-501-28 | 28 | 1-1/8 | 440 | 57.0 | 103 | 57.0 | 30.2 | 243 | 57.0 | 381 | 30.2 | 108 | 52.0 | 10.1 | 11.5 |
S-501-32 | 32 | 1-1/4 | 484 | 64.5 | 114 | 63.5 | 33.8 | 270 | 63.5 | 419 | 31.0 | 121 | 58.5 | 13.2 | 16.1 |
S-501-36 | 34-36 | 1-3/8 | 532 | 71.0 | 127 | 63.5 | 36.8 | 297 | 63.5 | 461 | 35.1 | 133 | 65.0 | 16.7 | 19.8 |
S-501-40 | 38-40 | 1-1/2 | 581 | 78.0 | 140 | 70.0 | 40.1 | 324 | 76.0 | 502 | 42.9 | 146 | 71.5 | 20.6 | 26.5 |
S-501-44 | 44 | 1-3/4 | 676 | 86.0 | 170 | 89.0 | 47.2 | 378 | 89.0 | 584 | 53.5 | 171 | 77.5 | 24.9 | 40.3 |
S-501-52 | 48-52 | 2 | 799 | 100 | 203 | 95.5 | 53.5 | 432 | 102 | 683 | 60.0 | 203 | 90.5 | 34.7 | 66 |
