VRBG吊环
● 带专利保险定位块保护螺栓免受弯曲和剪切外力使安全保证更多一层
● 螺栓小,高度低
● 吊耳性能同VRBS
● 配带路德特种内六角螺栓,100%经电磁裂纹检测,表面特殊防腐处理Deltaton
● 建议拧紧至120Nm,使用安全垫圈
● 载荷分布均匀
● 如需密封和固定螺栓,可选用螺纹紧固液,如Loctite270
● 定期检查螺栓是否拧紧
● 底板材质至少为1.0037(St 37-2)S235JR
●德国原装进口
![](/web_upfile/ck_file/images/2017/07/VRBG900.jpg)

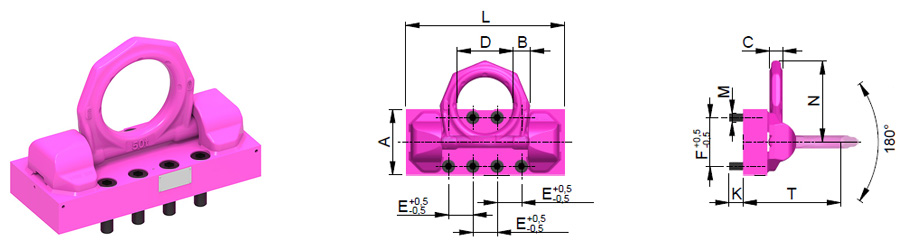

VRBG 31,5 and 50 - Load ring on plate for bolting
![](/web_upfile/ck_file/images/2017/07/VRBG900(1).jpg)
VRBG-31,5t - (7985866) | VRBG-50t - (7985867) | ||||
Attribute | Value | Value | Attribute | Value | Value |
weight | 67.50 kg | 148.81 lbs | weight | 194.00 kg | 427.70 lbs |
Nominal WLL | 31500 kg | 69300 lbs | Nominal WLL | 50000 kg | 110000 lbs |
T | 265 mm | 10-7/16" | T | 412 mm | 16-1/4" |
A | 180 mm | 7-1/16" | A | 270 mm | 10-5/8" |
B | 42 mm | 1-21/32" | B | 70 mm | 2-3/4" |
C | 42 mm | 1-21/32" | C | 55 mm | 2-5/32" |
D | 130 mm | 5-1/8" | D | 230 mm | 9-1/16" |
E | 75 mm | 2-15/16" | E | 100 mm | 3-15/16" |
F | 120 mm | 4-3/4" | F | 200 mm | 7-7/8" |
K | 46 mm | 1-13/16" | K | 60 mm | 2-3/8" |
L | 400 mm | 15-3/4" | L | 650 mm | 25-5/8" |
M | M30 mm | M30 | M | M36 mm | M36 |
N | 195 mm | 7-11/16" | N | 340 mm | 13-3/8" |
![](/web_upfile/ck_file/images/2017/07/VRBG9001.jpg)
