不锈钢钢丝绳

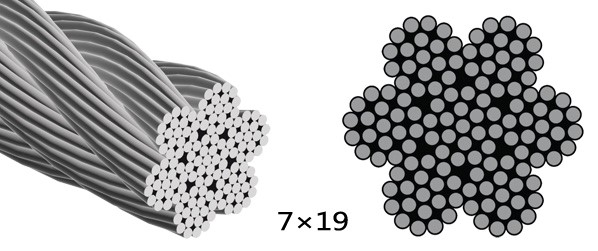

●类别:7*19
●符合GB/T9944-2015标准.
●不锈钢丝绳以优质的AISI304,AISI316等牌号为不锈钢原料拉丝捻制而成,不锈钢丝绳经过电解抛光后,表面更加光亮,抗腐蚀能力大大增强,经过低温热处理,钢丝绳可达到更高的强度。具有极佳的抗腐蚀、耐高温、耐低温性,广泛应用于石化工业、航空、汽车、渔业、精密仪器及建筑装饰等行业。
●材质 :304 , 316
●抗拉强度级别 :1570 N/mm2 , 1770 N/mm2
●可定制特殊结构不锈钢钢丝绳
![](/web_upfile/ck_file/images/2017/07/BXGGSGJGT.jpg)
304材质
直径 Diameter |
参考重量 Approx.Weight |
最小破断拉力(KN) Min.Breaking Load |
||||
mm | kg/100m | EN12385-4 | DIN3060 | GB/T9944-2015 | ||
1570Mpa | 1770Mpa | 1570Mpa | 1770Mpa | 1770Mpa | ||
304-1.5 | 0.92 | 1.26 | 1.43 | 1.26 | 1.43 | 1.43 |
304-1.8 | 1.32 | 1.82 | 2.05 | 1.82 | 2.05 | 2.05 |
304-2.0 | 1.63 | 2.27 | 2.56 | 2.27 | 2.56 | 2.56 |
304-2.2 | 1.98 | 2.72 | 3.06 | 2.72 | 3.06 | 3.06 |
304-2.5 | 2.55 | 3.55 | 4.00 | 3.55 | 4.00 | 4.00 |
304-3.0 | 3.68 | 5.12 | 5.77 | 5.12 | 5.29 | 5.77 |
304-4.0 | 6.53 | 9.09 | 10.25 | 9.09 | 9.40 | 10.70 |
304-5.0 | 10.21 | 14.21 | 16.02 | 14.21 | 21.20 | 17.40 |
304-6.0 | 14.70 | 20.50 | 23.10 | 20.50 | 28.20 | 23.50 |
304-8.0 | 26.14 | 36.40 | 41.00 | 33.30 | 37.60 | 40.10 |
304-10.0 | 40.84 | 56.80 | 64.10 | 52.10 | 58.80 | 56.80 |
304-12.0 | 58.81 | 81.80 | 92.30 | 75.00 | 84.60 | 81.80 |
304-14.0 | 80.05 | 111.40 | 125.60 | 102.00 | 115.00 | 111.40 |
304-16.0 | 104.55 | 145.50 | 164.00 | 133.00 | 150.00 | 156.00 |
304-18.0 | 132.32 | 181.70 | - | 169.00 | - | 181.70 |
304-20.0 | 163.36 | 224.40 | - | 208.00 | - | 224.40 |
304-22.0 | 197.67 | 271.50 | - | 252.00 | - | 271.50 |
304-24.0 | 235.24 | 323.00 | - | 300.00 | - | 323.00 |
304-26.0 | 276.08 | 378.00 | - | 352.00 | - | 378.00 |
304-28.0 | 320.19 | 439.80 | - | 409.00 | - | 439.80 |
316材质
直径 Diameter |
参考重量 Approx.Weight |
最小破断拉力(KN) Min.Breaking Load |
||||
mm | kg/100m | EN12385-4 | DIN3060 | GB/T9944-2015 | ||
1570Mpa | 1770Mpa | 1570Mpa | 1770Mpa | 1770Mpa | ||
316-1.5 | 0.92 | 1.26 | 1.43 | 1.26 | 1.43 | 1.43 |
316-1.8 | 1.32 | 1.82 | 2.05 | 1.82 | 2.05 | 2.05 |
316-2.0 | 1.63 | 2.27 | 2.56 | 2.27 | 2.56 | 2.56 |
316-2.2 | 1.98 | 2.72 | 3.06 | 2.72 | 3.06 | 3.06 |
316-2.5 | 2.55 | 3.55 | 4.00 | 3.55 | 4.00 | 4.00 |
316-3.0 | 3.68 | 5.12 | 5.77 | 5.12 | 5.29 | 5.77 |
316-4.0 | 6.53 | 9.09 | 10.25 | 9.09 | 9.40 | 10.70 |
316-5.0 | 10.21 | 14.21 | 16.02 | 14.21 | 21.20 | 17.40 |
316-6.0 | 14.70 | 20.50 | 23.10 | 20.50 | 28.20 | 23.50 |
316-8.0 | 26.14 | 36.40 | 41.00 | 33.30 | 37.60 | 40.10 |
316-10.0 | 40.84 | 56.80 | 64.10 | 52.10 | 58.80 | 56.80 |
316-12.0 | 58.81 | 81.80 | 92.30 | 75.00 | 84.60 | 81.80 |
316-14.0 | 80.05 | 111.40 | 125.60 | 102.00 | 115.00 | 111.40 |
316-16.0 | 104.55 | 145.50 | 164.00 | 133.00 | 150.00 | 156.00 |
316-18.0 | 132.32 | 181.70 | - | 169.00 | - | 181.70 |
316-20.0 | 163.36 | 224.40 | - | 208.00 | - | 224.40 |
316-22.0 | 197.67 | 271.50 | - | 252.00 | - | 271.50 |
316-24.0 | 235.24 | 323.00 | - | 300.00 | - | 323.00 |
316-26.0 | 276.08 | 378.00 | - | 352.00 | - | 378.00 |
316-28.0 | 320.19 | 439.80 | - | 409.00 | - | 439.80 |
牌 号 Material Grade |
C% | Ni% | Cr% | P% | S% | Si% | Mn% | Mo% |
AISI304 | ≤0.08 | 8.0-10.5 | 18-20 | ≤0.045 | ≤0.03 | ≤0.75 | ≤2.0 | - |
AISI304L | ≤0.03 | 8.0-10.5 | 18-20 | ≤0.045 | ≤0.03 | ≤0.75 | ≤2.0 | - |
AISI316 | ≤0.08 | 10.0-14.0 | 16-18.0 | ≤0.045 | ≤0.03 | ≤0.75 | ≤2.0 | 2.0-3.0 |
AISI316L | ≤0.03 | 10.0-14.0 | 16-18.0 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2.0 | 2.0-3.0 |
