不锈钢弓型卸扣
●具有体积小、重量轻、强度高等特点.
●最大试验载荷为额定载荷的2倍,最小破断载荷为额定载荷的4倍.
●符合ISO2415-2004规定的技术要求和检测方法.
●提供合格证及质保证书.
●材质 :304 ,316

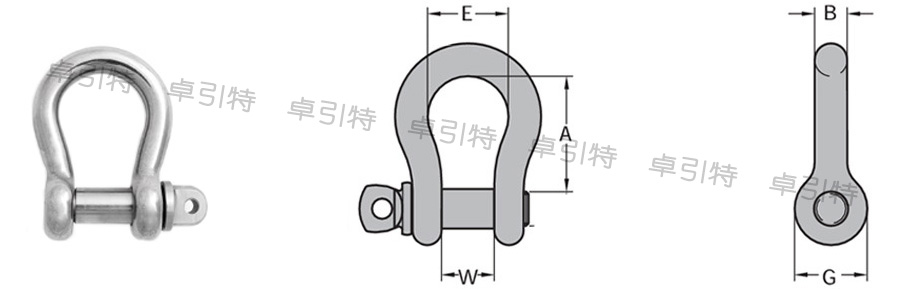

![](/web_upfile/ck_file/images/2017/07/BXGXKBW9001.jpg)
304材质
规格 | 尺寸mm | 额载 | 自重/只 | ||||
A | W | G | B | E | Kg | Kg | |
304-S-BW-M4 | 16 | 9 | 8.5 | 3.9 | 12.5 | 100 | 0.008 |
304-S-BW-M5 | 17.5 | 11.2 | 9.8 | 4.9 | 14.8 | 160 | 0.015 |
304-S-BW-M6 | 23 | 12.8 | 11.5 | 5.6 | 21 | 220 | 0.026 |
304-S-BW-M8 | 27 | 16 | 16.3 | 7.6 | 24.8 | 400 | 0.058 |
304-S-BW-M10 | 35.4 | 22.5 | 18.8 | 9.6 | 29 | 640 | 0.11 |
304-S-BW-M12 | 45 | 25 | 23.6 | 11.6 | 37 | 880 | 0.2 |
304-S-BW-M14 | 56.2 | 27.9 | 27.6 | 13.6 | 47.1 | 1120 | 0.32 |
304-S-BW-M16 | 61.5 | 34 | 31.6 | 15.5 | 54 | 1600 | 0.48 |
304-S-BW-M18 | 71.2 | 39.5 | 35.1 | 17.5 | 57.1 | 1800 | 0.7 |
304-S-BW-M20 | 80 | 40 | 39.1 | 19.6 | 64 | 2000 | 0.94 |
304-S-BW-M22 | 86.5 | 45.5 | 43.5 | 21.9 | 72.7 | 3000 | 1.28 |
304-S-BW-M25 | 92.4 | 50.1 | 48.4 | 24.5 | 73.9 | 4000 | 1.77 |
304-S-BW-M28 | 118.5 | 59.4 | 54 | 27.2 | 93.8 | 5000 | 2.6 |
304-S-BW-M32 | 154.3 | 68.2 | 62.7 | 31.4 | 116.2 | 6400 | 4.08 |
304-S-BW-M38 | 173.6 | 81.3 | 75.9 | 37.5 | 133.4 | 10000 | 7.13 |
316材质
规格 | 尺寸mm | 额载 | 自重/只 | ||||
A | W | G | B | E | Kg | Kg | |
316-S-BW-M4 | 16 | 9 | 8.5 | 3.9 | 12.5 | 100 | 0.008 |
316-S-BW-M5 | 17.5 | 11.2 | 9.8 | 4.9 | 14.8 | 160 | 0.015 |
316-S-BW-M6 | 23 | 12.8 | 11.5 | 5.6 | 21 | 220 | 0.026 |
316-S-BW-M8 | 27 | 16 | 16.3 | 7.6 | 24.8 | 400 | 0.058 |
316-S-BW-M10 | 35.4 | 22.5 | 18.8 | 9.6 | 29 | 640 | 0.11 |
316-S-BW-M12 | 45 | 25 | 23.6 | 11.6 | 37 | 880 | 0.2 |
316-S-BW-M14 | 56.2 | 27.9 | 27.6 | 13.6 | 47.1 | 1120 | 0.32 |
316-S-BW-M16 | 61.5 | 34 | 31.6 | 15.5 | 54 | 1600 | 0.48 |
316-S-BW-M18 | 71.2 | 39.5 | 35.1 | 17.5 | 57.1 | 1800 | 0.7 |
316-S-BW-M20 | 80 | 40 | 39.1 | 19.6 | 64 | 2000 | 0.94 |
316-S-BW-M22 | 86.5 | 45.5 | 43.5 | 21.9 | 72.7 | 3000 | 1.28 |
316-S-BW-M25 | 92.4 | 50.1 | 48.4 | 24.5 | 73.9 | 4000 | 1.77 |
316-S-BW-M28 | 118.5 | 59.4 | 54 | 27.2 | 93.8 | 5000 | 2.6 |
316-S-BW-M32 | 154.3 | 68.2 | 62.7 | 31.4 | 116.2 | 6400 | 4.08 |
316-S-BW-M38 | 173.6 | 81.3 | 75.9 | 37.5 | 133.4 | 10000 | 7.13 |
