Product number: ZYT021427
Back to page
Lifting trolley
●Double sealed ball bearings
●Built-in bumper guards
●Adjustable to fit various sizes of flange and I-beams
●Use on straight or curved track
●Can be installed or removed at any point along the track

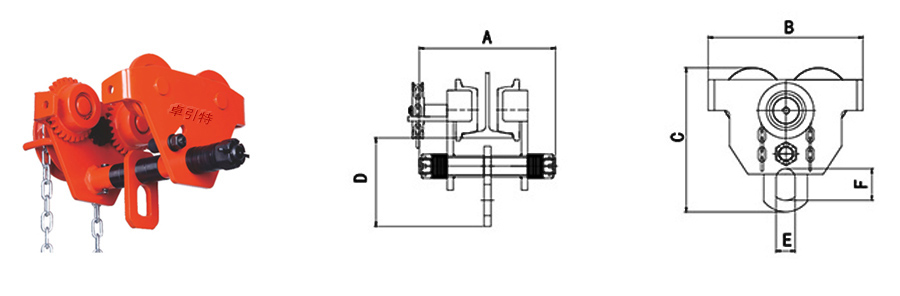

Hand-pulled crane trolley
![](/web_upfile/ck_file/images/2019/06/SLDGXC900.jpg)
ITEM No. | GCT-A-1 | GCT-A-2 | GCT-A-3 | GCT-A-5 | GCT-A-10 | ||
GCT-B-1 | GCT-B-2 | GCT-B-3 | GCT-B-5 | GCT-B-10 | |||
WLL(t) | 1 | 2 | 3 | 5 | 10 | ||
Test load(KN) | 12.5 | 25 | 37.5 | 62.5 | 125 | ||
Standard height(m) | 3 | 3 | 3 | 3 | 3 | ||
Pulling force at full load (N) | 42.4 | 80 | 111.6 | 174.9 | 228 | ||
Minimum radius of bend that can pass(m) | 1 | 1.1 | 1.3 | 1.4 | 1.7 | ||
Size(mm) | A | GCT-A | 260 | 270 | 343 | 377 | 414 |
GCT-B | 321.5 | 334.5 | 428 | 448 | 414 | ||
B | 250 | 270 | 316 | 358 | 430 | ||
C | 214 | 228 | 297 | 333 | 434 | ||
D | 117.5 | 124 | 160.5 | 181 | 250 | ||
E | 29 | 30 | 46 | 54 | 63 | ||
F | 46 | 46 | 76 | 83 | 94 | ||
Track width(mm) | GCT-A | 75-125 | 100-150 | 100-150 | 125-175 | 110-200 | |
GCT-B | 75-180 | 100-200 | 100-250 | 125-250 | 110-300 | ||
Net weight(kg) | GCT-A | 11 | 15.5 | 25 | 34 | 80 | |
GCT-B | 12 | 16 | 26 | 35 | 84 |

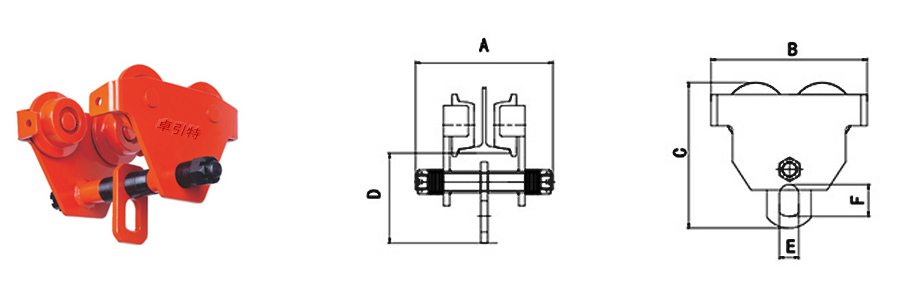

Hand-pushed crane trolley
![](/web_upfile/ck_file/images/2019/06/STDGXC900.jpg)
ITEM No. | PCT-A-0.5 | PCT-A-1 | PCT-A-2 | PCT-A-3 | PCT-A-5 | ||
PCT-B-0.5 | PCT-B-1 | PCT-B-2 | PCT-B-3 | PCT-B-5 | |||
WLL(t) | 0.5 | 1 | 2 | 3 | 5 | ||
Test load(KN) | 6.25 | 12.5 | 25 | 37.5 | 62.5 | ||
Minimum radius of bend that can pass(m) | 0.9 | 1 | 1.1 | 1.3 | 1.4 | ||
Size(mm) | A | PCT-A | 198 | 220 | 235 | 285 | 315 |
PCT-B | 280 | 282 | 300 | 370 | 386 | ||
B | 204 | 250 | 270 | 315.5 | 358 | ||
C | 189 | 214 | 228 | 297 | 333 | ||
D | 113 | 118 | 124 | 161 | 181 | ||
E | 22 | 29 | 30 | 46 | 54 | ||
F | 36 | 46 | 46 | 76 | 83 | ||
Track width(mm) | PCT-A | 75-125 | 100-125 | 100-150 | 100-150 | 125-175 | |
PCT-B | 75-180 | 100-180 | 100-250 | 100-250 | 125-250 | ||
Net weight(kg) | PCT-A | 6 | 8.5 | 13.5 | 22 | 30 | |
PCT-B | 6.3 | 9 | 14 | 23 | 32 |
